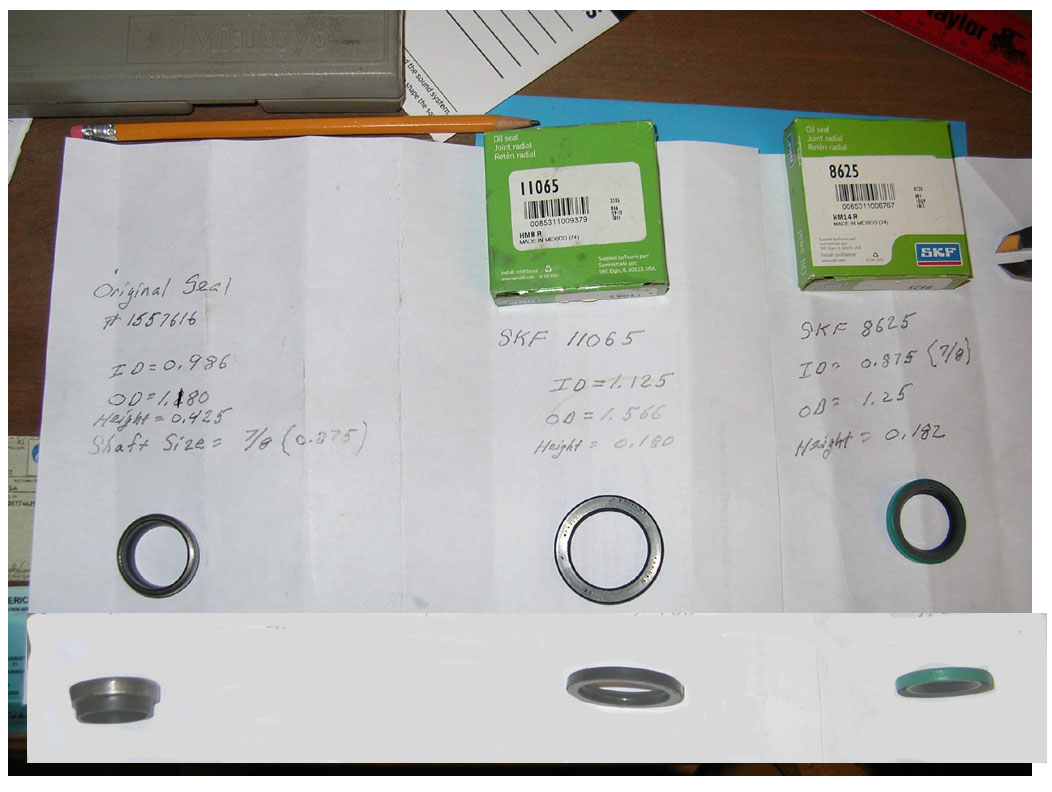

The closest seal I could find was the SKF 8625, which has the proper 0.875" (7/8") Inside Diamater and a slightly larger than original Outside Diameter of 1.25". By carefully the enlarging the bore of the top cover with a dremel tool and stopping to measure as I worked, I was able to press the new seal in with a nice fit.
Studebaker Avanti Ross Steering box Topseal (Adam DeRosa - Apr 2011)
After I was unable to locate the proper replacement seal, I decided to go with "plan b" and find an off-the-shelf replacement that was close. I carefully removed my seal and took it to my local Motion Industries (formerly Berry Bearing) outlet to see what was available.
The main difference though is that the original seal has a much greater height than the replacement seal ( 0.425 vs. 0.182) but I don't think this will be an issue as the replacement fits tightly in the cover and snugly on the shaft.
Adam DeRosa - Apr 2011
|
