Thread: Hanging brake pedal on a CK?

  1. #1
    pszikszai
    • View Profile
    • View Forum Posts
    • Private Message
    • Add as Contact
    pszikszai is offline
    Senior Member
    Join Date
    Nov 2004
    Location
    South Bend, IN, .
    Posts
    230

    Hanging brake pedal on a CK?

    Did anyone do it.
    If yes,please describe the procedure.
    Thanks
    Paul

  2. #2
    sweetolbob
    • View Profile
    • View Forum Posts
    • Private Message
    • Add as Contact
    • Send Email
    sweetolbob is offline
    Senior Member
    Join Date
    Jan 2008
    Location
    Bay City, Mi., USA.
    Posts
    1,524
    Paul

    I used a pedal assembly including the M/C, Brake booster and proportioning valve from an 89 Camaro IROC. It required I reinforce the firewall with a 3/16" metal plate bent to the contours of the firewall.I also added some reinforcing structure to support the top of the pedal assembly.

    It ended up at about the same angle as the Camaro. I also used the power brake booster which required a modification of the fender well. A smaller booster unit would not require those mods. I also adapted a set of Monte Carlo calipers and discs to the front spindles.

    Just depends on how far you want to go.

    Bob
    ,

  3. #3
    ralt12
    • View Profile
    • View Forum Posts
    • Private Message
    • Visit Homepage
    • Add as Contact
    ralt12 is offline
    Senior Member ralt12's Avatar
    Join Date
    Jan 2006
    Location
    SoCal, USA
    Posts
    163
    You can also try these folks:
    https://www.kugelkomponents.com/products/brakesystem.php
    \'53 Commander
    Art Morrison chassis
    LS6 ASA/4L60E

  4. #4
    rusty nut garage
    • View Profile
    • View Forum Posts
    • Private Message
    • Add as Contact
    rusty nut garage is offline
    Senior Member
    Join Date
    Apr 2005
    Location
    Gilbert, AZ, USA.
    Posts
    433
    the guy that builds the front end kit for ck cars and advertises in TW also makes a conversion kit for the swinging pedals on a ck. I saw it at the international meet, looked like a well built peice. I forget the company name.
    Quote Originally Posted by pszikszai View Post
    Did anyone do it.
    If yes,please describe the procedure.
    Thanks
    Paul

    Russ Shop Foreman \"Rusty Nut Garage\"
    53 2R6 289 5SpdOD (driver)
    57 SH (project)
    60 Lark VIII 2dr sd (driver)

  5. #5
    Jeff_H
    • View Profile
    • View Forum Posts
    • Add as Contact
    Jeff_H is offline
    Senior Member Jeff_H's Avatar
    Join Date
    Dec 2004
    Location
    S RR Valley, ND, USA.
    Posts
    1,006
    I've posted these before.

    This shows the heavily modified bracket and arm from a '63 lark that I used to do the swinging brake pedal on my '53. The end that attached to the bottom of the dash (left side in picture) was cut off and a plate welded there to mate up to the '53 dash lower edge and the U-bolt and coller for the steering column. I have a studebaker steering column and the stock dash and supports including the triangle shaped brace that helps hold up the column. The other end that butts to the firewall was also modified so it would fit up to the angled firewall of the '53. A '63 lark firewall is vertical. Then there is a wedge shaped piece that goes on the engine side to set the angle of the master cylinder so its level. The push rod was cut in half and lengthened about a inch due to the wedge part.

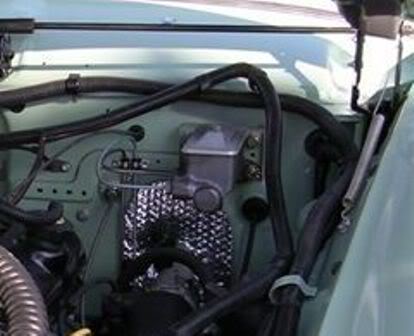

    Here it was installed.



    I was aware of possible firewall flex but sadly did not sufficiently take that into account. So, I had some less than solid brakes. If the car hadn't been all together and painted, etc, I would have welded a nice thick plate up to the backside of the firewall. So, my solution was to add a booster. This is a '62 lark booster assy with the '63 master mounted on it. Again, some more custom mods to the push rods (both of them) was needed to get this to work.



    I think I would have been better off using some other master and booster since getting all these units rebuilt was rather costly. Not only that, my late addition of the booster barely fits under the hood. If I had planned for this booster up front I would have mounted things about 1/2" lower. Any solution is going to require some fabrication. Definately you will need to reinforce the firewall.

    You will also note the battery is no longer on the driver side. Its moved to the passenger side to make room for the brake parts. As you can tell, there is almost nothing under the hood of my '53 that is stock....



    BTW, this engine room shot is a few years old. I've since gotten a better radiator w/o all those nasty patches on the tank and cleaned up some other details like those rusty bolts down by the grill.

    Jeff in ND

  6. #6
    PackardV8
    • View Profile
    • View Forum Posts
    • Private Message
    • Add as Contact
    PackardV8 is offline
    Senior Member
    Join Date
    Jun 2006
    Location
    Spokane, WA, USA.
    Posts
    1,974
    This is not an easy or inexpensive conversion. Many of the hanging pedal lashups where builders used wrecking yard parts aren't totally successful. A while back, a local rod shop had to repair one a home-builder installed which fatigued the firewall and cracked the sheet metal. It required removing a the engine to repair and reinforce the firewall.

    You asked about hanging pedals, but here's an alternative for serious fabricators. Of all the cars I've ever driven, the older BMWs and Porsches with the floor-mounted pedals had the best feel and action. Since the C/Ks have all that room down below the floor anyway, next one I do, I'm looking at this setup. https://www.wilwood.com/Images/PEDALS...40-1289-lg.jpg It isn't cheap, but they come up for sale on eBay from time to time. It wouldn't require any more fabrication than a good-science hanging pedal setup.

    jack vines
    Last edited by PackardV8; Today at 02:07 PM.
    PackardV8

  7. #7
    Bob Andrews
    • View Profile
    • View Forum Posts
    • Private Message
    • Add as Contact
    • Send Email
    Bob Andrews is offline
    Senior Member Bob Andrews's Avatar
    Join Date
    Jul 2010
    Location
    Parish, central NY
    Posts
    179
    We've used that floor-mount pedal setup for years on our race cars (oval track). Ours uses a balance bar with a knob-type adjuster. We also use the mate to it for the hydraulic clutch. About as bulletproof as one can get.
    Proprietor- IoMT (Island of Misfit Toys)
    Formerly bams50


    GOD BLESS AMERICA
    Ephesians 6:10-17
