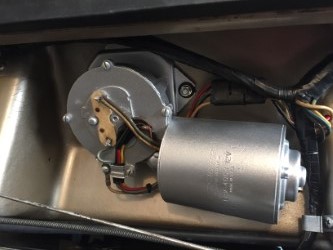

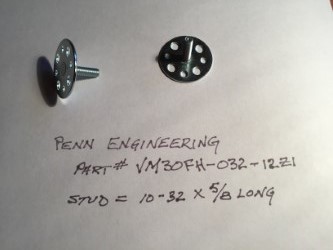

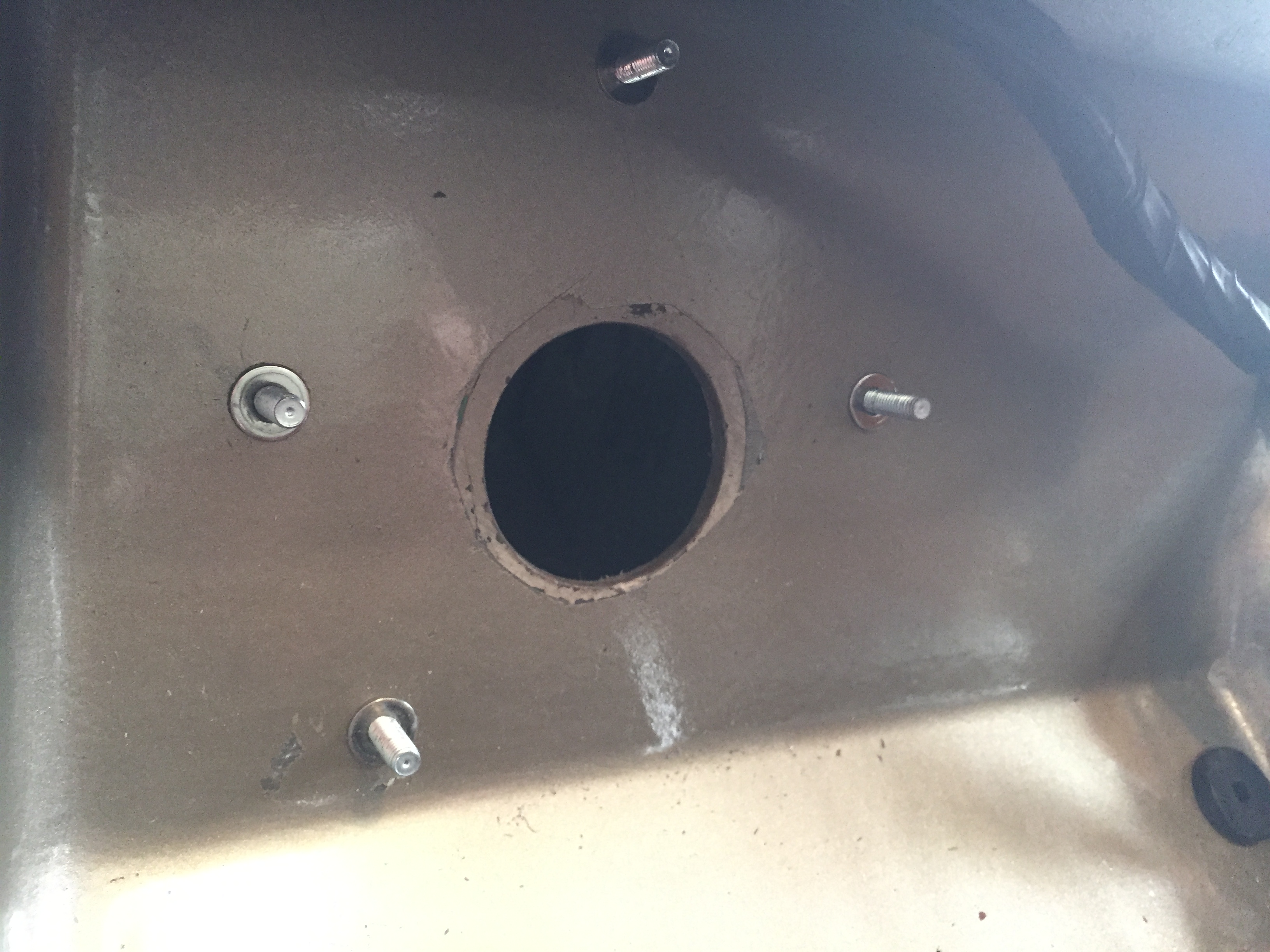

Cotuit Boy 0 Report post Posted Friday at 12:14 PM If any of you have ever removed your windshield wiper motor you know that it is very difficult to access the nuts located on the inside of the firewall that secure the four screws that are inserted through the wiper mounting grommets. I had no issue removing the nut securing the wiper linkage to the motor shaft by accessing it through the center console. I won’t comment on accessibility for those having the A/C unit located in the console. I unscrewed the four 10-32 round head machine screws holding the motor assy. in place from the outside; letting the nuts just fall into the car’s interior to be found with a mag pick up tool. Getting to them from the inside for reinstalling again - even without A/C - was too painful to think about. So I offer this solution which makes installation whenever the motor is removed, quick and easy. Having worked in the machine design world for many years, I often used “PEM Nuts” when sheet metal parts needed to be secured with threaded fasteners. Penn Engineering (https://www.pemnet.com/) offers an entire array of fastener solutions so I turned to them for my way around this difficult problem. I chose two different types to evaluate. One a female 10-32 mount (P/N VM30SS-032-2Z1) and the other a 10-32 x 3/4” (5/8” stud length) style mount (VM30FH-032-12Z1). The company was nice enough to send me samples of both at no charge. Complete CAD drawings can be found on their website. Because the four holes in the fire wall are a tight clearance fit for the 10-32 screws that hold the motor mounting plate and rubber grommets I was concerned about using the female mounting, as I would have to open the holes in the firewall and was concerned about losing alignment with the motor bracket. So, I went with the male 10-32 stud mount which required no modifications to the car. The mounting method is designed to be secured with an adhesive and I chose a two part epoxy putty since it wouldn’t be dripping down my arms while I inserted the fastener into position through the large opening in the firewall with my fortunately long fingers. After inserting the fastner thru the hole in the firewall, I installed a flat washer and a nut then pulled the fastener into place forcing the putty to “ooze” into the holes in the backing plate making a secure bond to the fiberglass body. Once cured, the wiper motor with its base plate could be dropped onto the studs & flat washer, and secured from the outside with another flat, a lock washer, and 10-32 hex nuts. The purists among you may like the female -2Z1 style fastener since it can be secured using round head machine screws like the factory used. Either way, there is no need to go at it from the inside again. Those of you with A/C, my apologies, as I don’t know what you have for access to the nut securing the shaft to the wiper linkage but the motor securing method I have described should work for you just as well. Quote Share this post Link to post Share on other sites

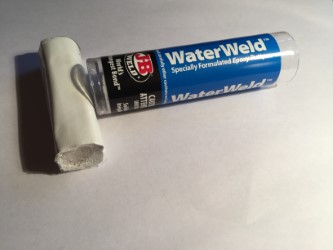

Rob Dudley 0 Report post Posted Friday at 07:07 PM I like that idea a lot. I have a/c and it is a PITA to get to those nuts. I did find it much easier when I moved the radio out of the way, then removed the speaker which needed replacement at the same time. Rob Quote Share this post Link to post Share on other sites
GlennW 0 Report post Posted Monday at 10:59 AM (edited) Nice! I used aluminum (no rust and won't damage the fiberglass like steel can) "riv-nut" threaded fasteners in the appropriate thread and re-used the original screws. No need to use backing washers inside the firewall to spread the force out around the hole, like with a pop-rivet. I prefer the ones with knurling on the barrel to help avoid them ever spinning in use, and you need the exact size drill/hole to where the rivnut needs a little push just to get it in. It's important to note the material thickness of the dash to get the correct grip range rivnut. Edited Monday at 11:16 AM by GlennW Quote Share this post Link to post Share on other sites

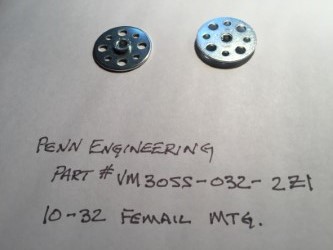

Cotuit Boy 0 Report post Posted Monday at 02:31 PM I liked the bonded style I chose since they have a large bonding plate to spread the load. They are available in male stud or female thread as my write up mentioned. They are also available in stainless steel as well as the plated steel that I used if corrosion is a concern. Like minds think alike! Quote Share this post Link to post Share on other sites
GlennW 0 Report post Posted Monday at 10:16 PM Absolutely, I had never seen those before so as with most things in life, once you know something exists you can be prepared for the day you need it Quote Share this post Link to post Share on other sites
