Thread: Studebaker Power Steering Control Valve - how to

  1. #1
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728

    Studebaker Power Steering Control Valve - how to

    EDIT for picture location, and to add critical Q & A thread link.

    https://forum.studebakerdriversclub.c...m-rebuild-Q-A/

    The rebuild process ended up happening on the above thread mostly, I
    will make an effort to transfer the info eventually, but for now the
    above link can be used - 12/31/08

    Back to the original thread :

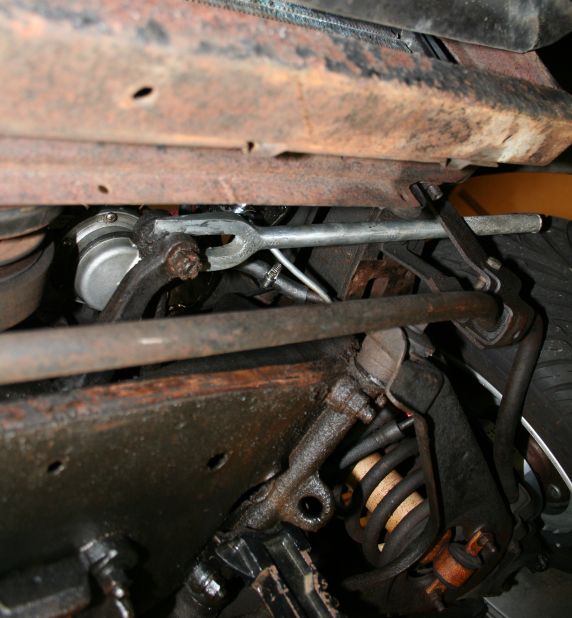

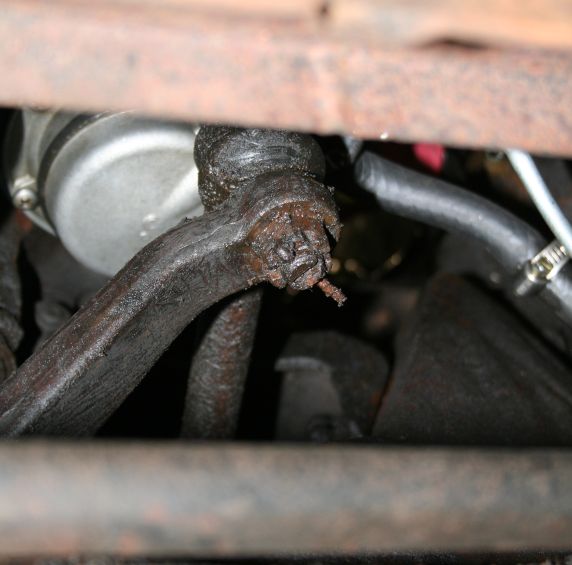

    OK, those following these threads know that the pump is now rebuilt,
    the ram is off the car and clean, but the control valve has not been
    cooperating in the least. After I got the starter off, I finally was
    able to see the core plug thats been leaking for the last decade. It
    came out fairly easy with a screw driver and after a hole was made, a
    Studebaker jack/lug nut tire iron. Not a lot of room to get the new
    one back in, so I figured once the control valve/pitman arm was out of
    the way, things would open up. Problem is, I have a clearance issue.
    I can not get either my 3/4 breaker bar, nor my 3/4 ratchet onto that
    pitman arm bolt - the engine block is in the way. The socket needed
    is a 1-1/4, which requires a 3/4 drive. Jacking up the engine doesnt
    sound realistic, so I was considering a 1-1/4 box end wrench. I dont
    remember having this problem with my Hawk, but the engine IS also in a
    different location in relation to the steering box, so that might play
    an important role. I ended up getting a 1/2 inch drive 1-1/4 socket
    from Sears (my set only went up to 1-1/8). As was mentioned by Mike
    Mudd, it will fit beween the engine and the nut. With a bar on the 1/2
    drive, and a pipe against the tierods to stop the steering system from

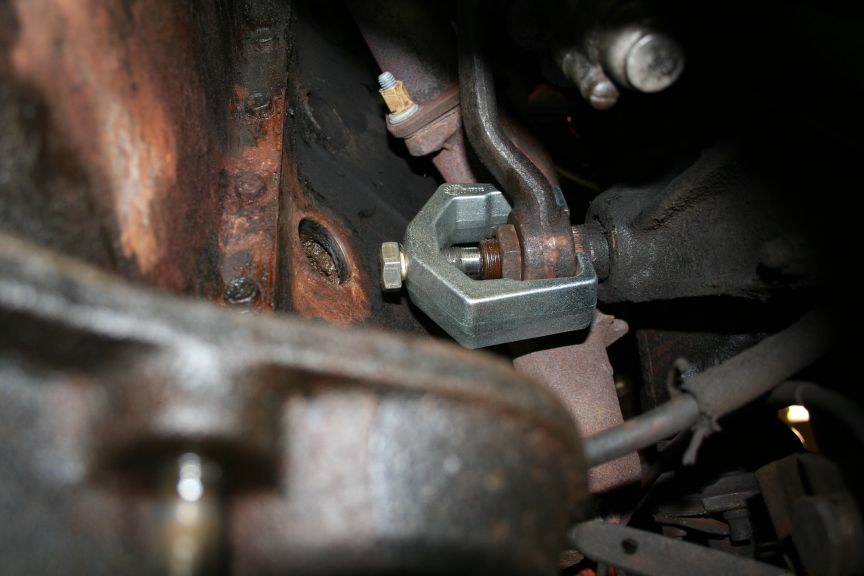

    flexing, I was able to break the nut loose. The small puller that I
    got (listed as a tie rod/import pitman arm) is smaller than that one
    recommended by Mike, it doesnt fit over that thick and fat Studebaker

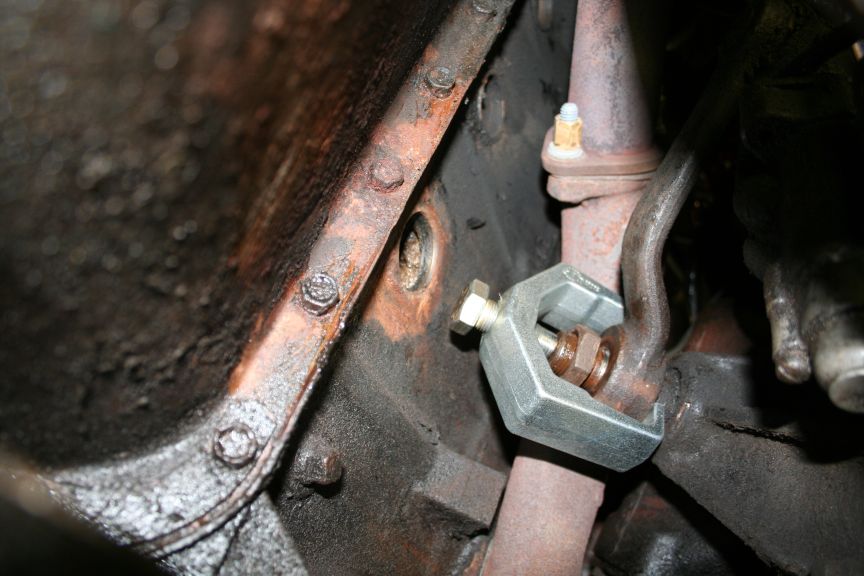

    pitman arm. Autozone had the larger one and for 15 bucks I brought it

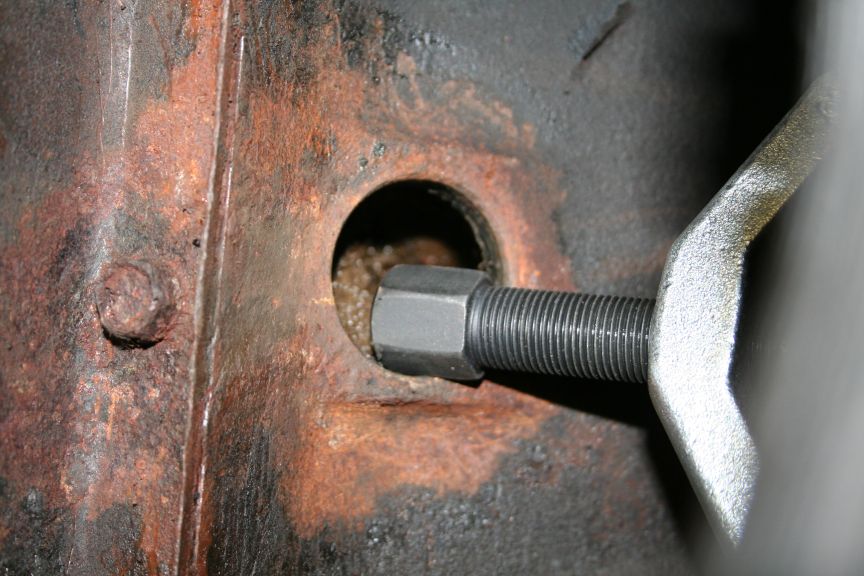

    home. It was recommended to use a shorter 5/8-18 bolt in the puller
    but I decided to see if I could fit it up in there. Due to removing
    that leaking core plug, I had extra room you wouldnt normally have. I
    cranked down on the bolt and sprayed both sides of the spline with PB
    Blaster - it sat with tension on it for a couple days - no change :





    I figured I just wasnt getting enough leverage with the open end of

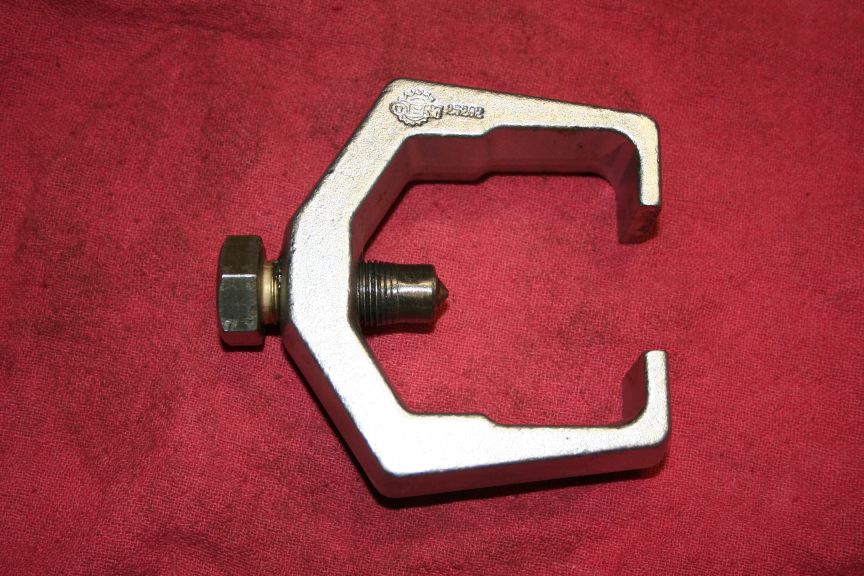

    the wrench, so I got a grade 8 bolt in the town I work, and modified
    it to center on the hole in the shaft. Its a 1-3/4 long bolt & I took
    the last 1/2 of thread off, and then ground a point on it, with a bit
    of a shoulder, like the bolt included with the puller. The point is
    an important addition, it centers the bolt on the shaft and keeps it
    from "walking" off the shaft when its turned. If it walks, the puller
    can break from side load, or the threads on the shaft could be damaged.

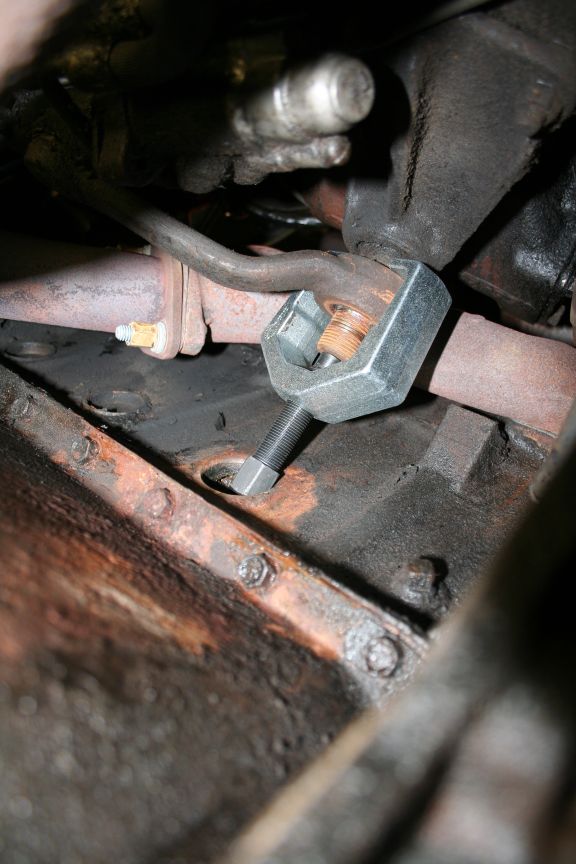

    I greased up the threads and put it on the pitman arm. I used a 15/16
    open end wrench, with 3/4 box end wrench slipped onto the open end to
    get more leverage. I tighted it down, and used a piece of steel to
    hit the side of the pitman arm with a sledge hammer.



    Success! A couple hits, and tightened the puller some more and it got
    loose and came off. Finally!!

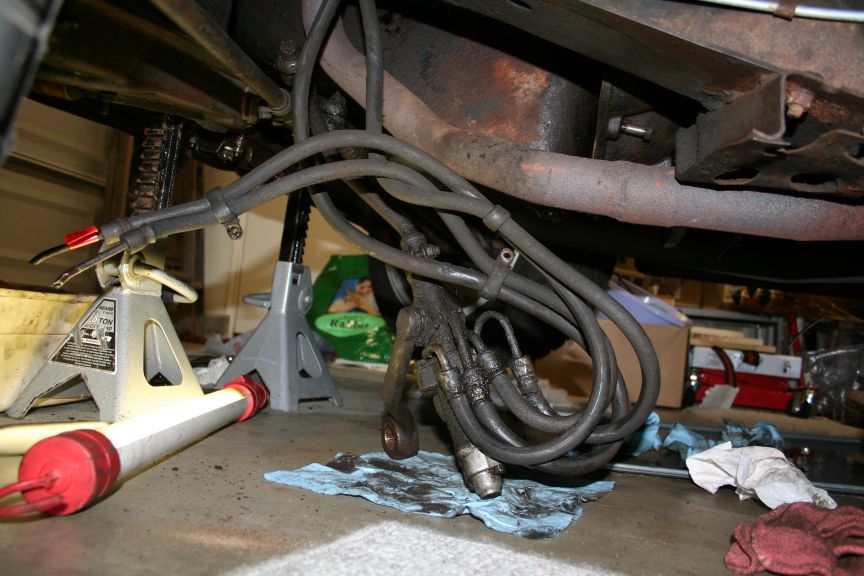

    Removed the cotter pin and nut from the other end of the control valve
    on the bell crank, and put my pickle fork tie rod separator in there,
    a couple hits from the sledge and it came loose.









    Tom
    Last edited by sbca96; Yesterday at 01:49 AM. Reason: SDC forum was broked

  2. #2
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728

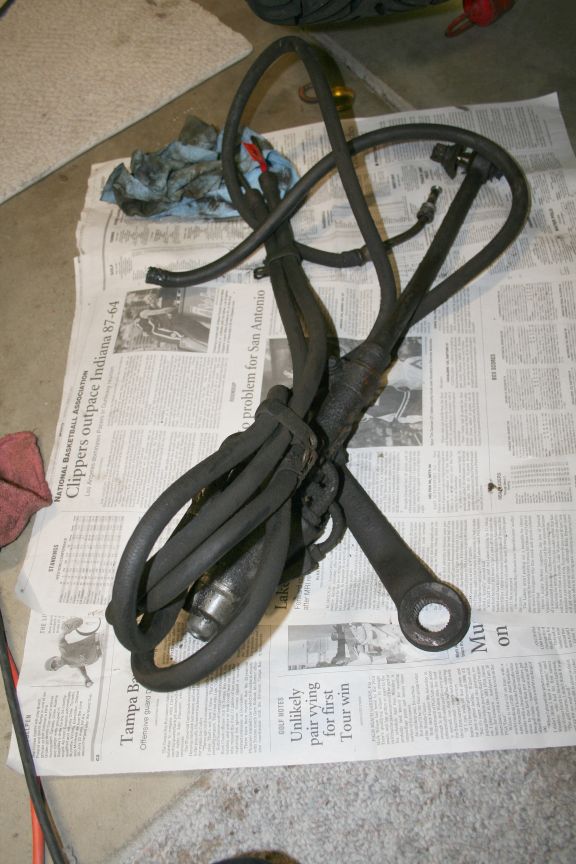

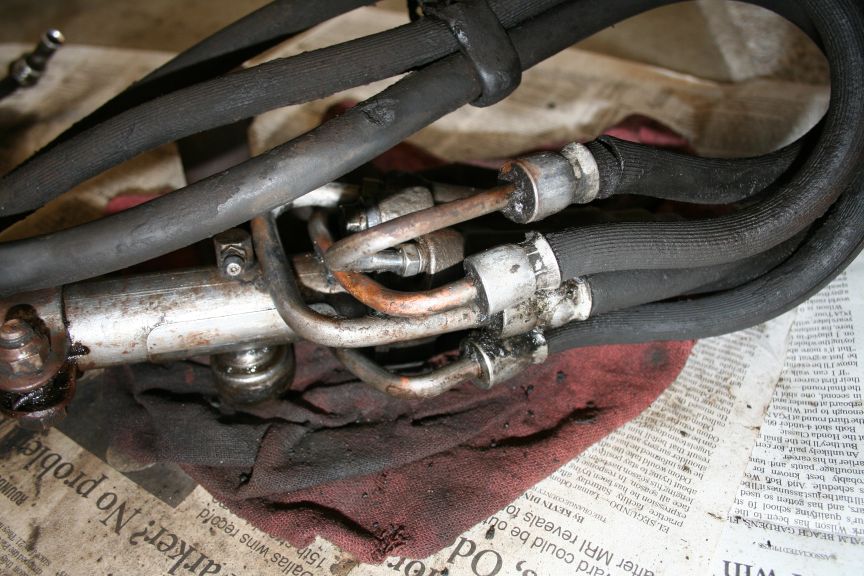

    Did some cleaning ...



    Tom

  3. #3
    Commander Member
    Join Date
    Nov 2006
    Location
    Milwaukee, WI
    Posts
    73
    I just got mine back togeather...I have R3 manifolds and decided to pull the steering box to make life easier.Bad idea!
    I had to pull the manifold to get the box out and it was no small chore to get the box and the manifold out at the same time. Because I detailed the box and manifold,getting them back in with any paint left on them was a whole new issue! I pulled the master and brake booster to get the box in from the top and I pulled the PS pump to get the manifold in from the bottom! The trick was to let the box hang from the column and pull the column back about an inch to snake the manifold around the pitman shaft. I sounded like the old man from" A Christmas Story" changing the flat tire!!
    All better now

    '64 R2 back on da road again
    POCI,SCCA,SIMTA

  4. #4
    President Member
    Join Date
    Oct 2004
    Location
    Dothan, Alabama.*******SDC member
    Posts
    3,322
    quote:Originally posted by sbca96

    Did some cleaning ...



    Tom
    Tom, do you have a continuation of this. nice work jimmijim

    Stude Junkie+++++++Do it right the f$$$$ Time. Never mind. Just do it right. When youre done your done. You'll know it.

  5. #5
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    There is a note, and a link at the top of the page, I need to get some
    spare time to copy/paste and organize the pieces in the other thread.

    Tom

  6. #6
    President Member
    Join Date
    Apr 2005
    Location
    mass
    Posts
    2,155
    I had good luck using a very large Crescent Wrench to remove the nut. I then bought the puller you showed (or one very much like it) and hacksawed the length needed to fit. No clearance problems..came out nicely. I don't remember if I put Locktite on those threads or not.........BTW, all you guys complaining about your engines overheating......see all the casting crud & gunk inside and behind the expansion (freeze) plug....At this point, you need to pull all the plugs and flush clean with coat hangers etc....I know I'm repeating this, but I found it easier to take care of all the oil leaks, new freeze plugs, cleaned block etc...ot of the car....made for a very easy PS valve install too......its easier than you think.....

  7. #7
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    I dont know why .. but this thread got destroyed during the upgrade of
    the forum. Some of my other threads got screwed up the same way.
    Its obvious that its messed up - if you look at post 1, one of the picture
    links is half typed ... not my style. A real loss.

    Tom
    Last edited by sbca96; 07-03-2010 at 04:02 PM.

  8. #8
    President Member
    Join Date
    Sep 2005
    Location
    Washington, DC, USA.
    Posts
    2,903
    Tom-
    I really enjoy your how-to articles, even if I don't intend to do a similar job any time soon. I hope a way can be found to recover and re-assemble the missing pieces.

  9. #9
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    I am going to find out how to send the mod a message, and see if there is a
    backed up database that can be restored. Thanks

    Tom

  10. #10
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    Transferring from the Q&A thread listed above ...

    OK ... trying to get the new return line on, I just could NOT get it to fit past the zerk
    tower. I tried to bend it a little, and that did not work either. I got frustrated and got
    it close, then hit it with the end of the screwdriver handle - which put a knick in the
    new metal bent end. These are amazingly soft material.

    I decided to unscrew the zerk tower to get the line on, and than put it back on after
    I wasnt ready for this result :





    Just how screwed am I? I have a feeling this is VERY bad. Who knew the tower was
    NOT threaded in?? Its a freakin 7/16 bolt head!!!

    Tom

  11. #11
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    So during the cleaning process the, once rubber, block between the pitman arm and the
    control valve snapped in half. Mike informs me it available through S.I. but I think that
    might have found it at Napa, its part number NOS4938 :

    https://www.napaonline.com/masterpage...Arm+Shaft+Seal

    What do you think?

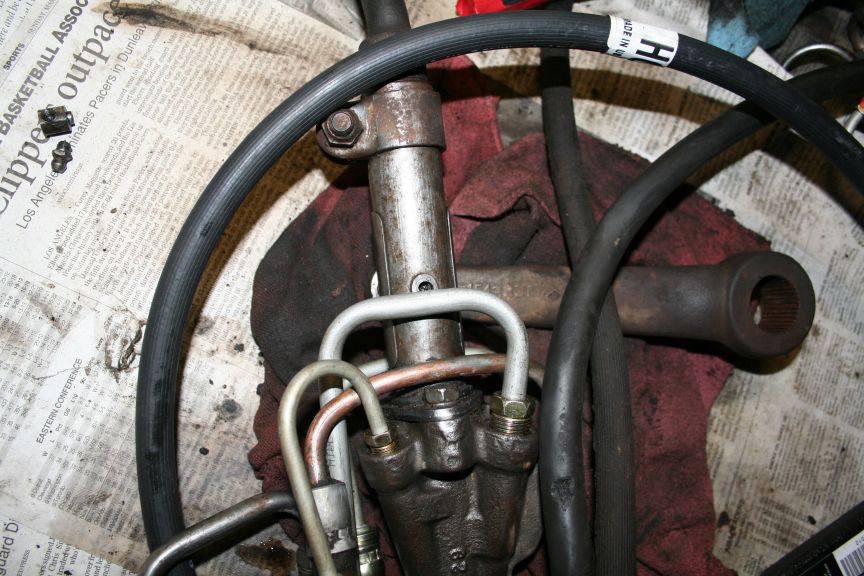

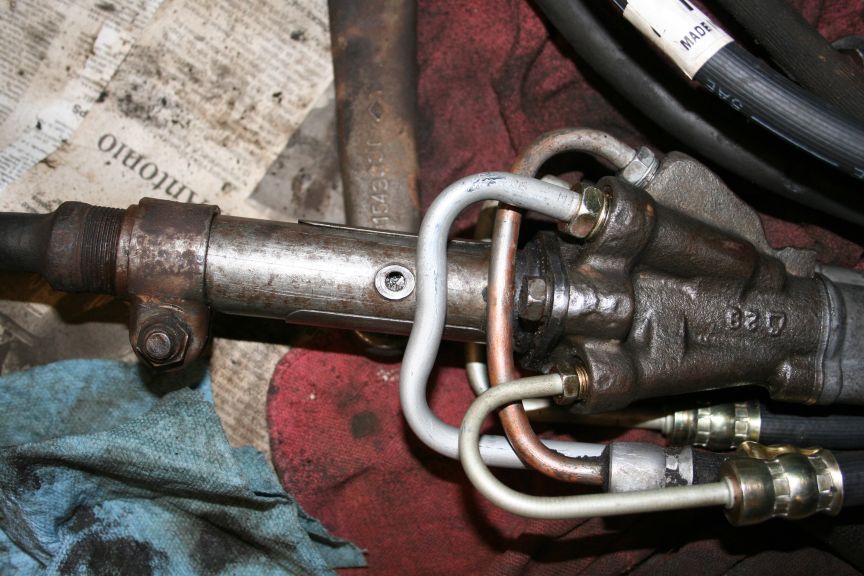

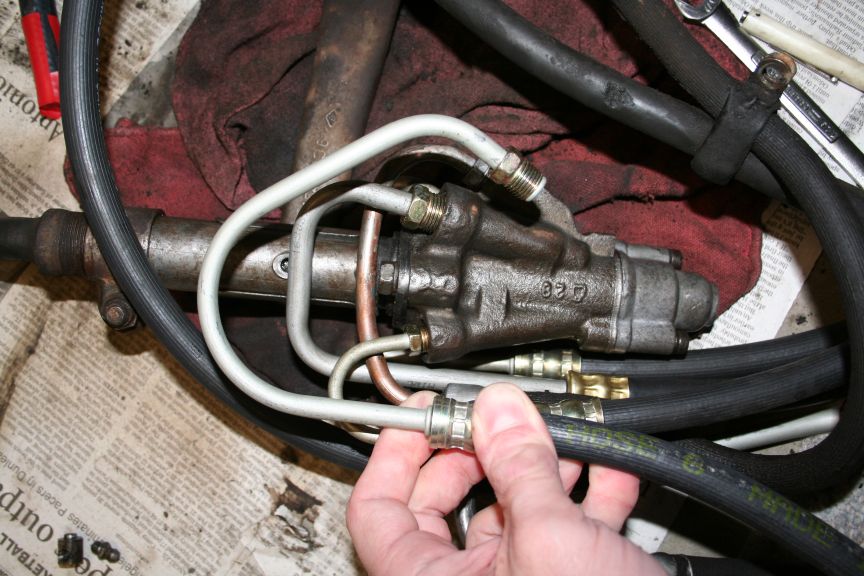

    Also, I took some pictures of the new hoses. You can see the original hose on the control
    valve (brownish/gold), and I am holding the new hose, the bend is completely different:



    Also notice that there is NO way the return line will clear the tower I broke off ... whats
    going on here??

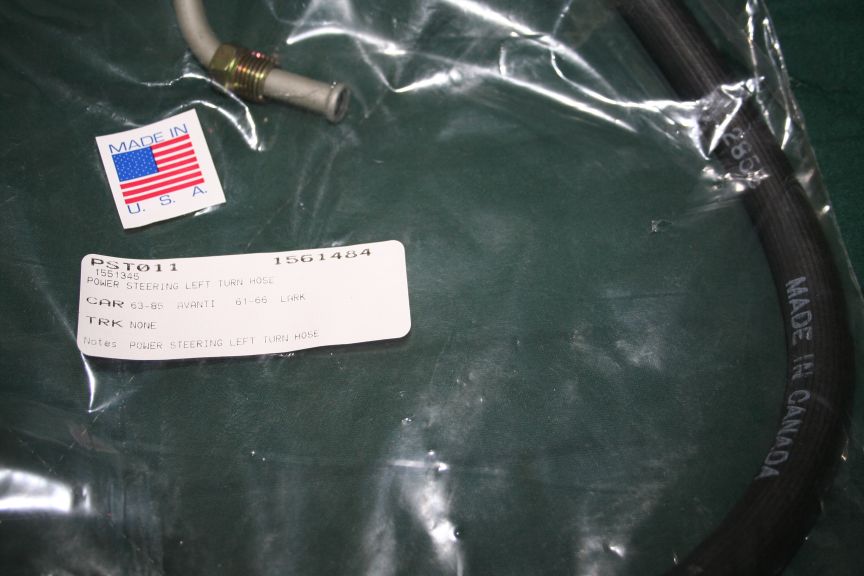

    According to the packaging I got the correct hose ...... BTW, is this new hose "made in
    USA" or "made in Canada"?



    Tom

  12. #12
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    If they say that getting a little done each day is GOOD, then I have certainly perfected doing

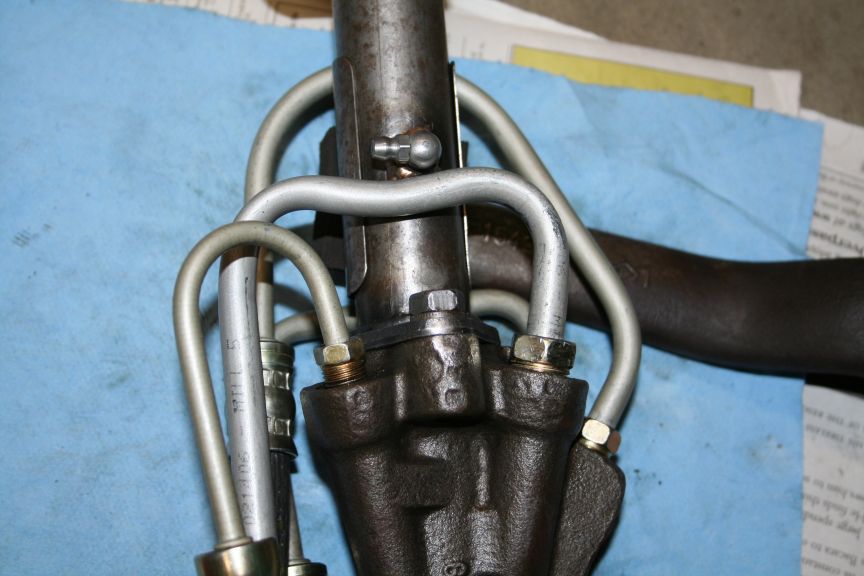

    ONLY a little. I bought a tubing bender and mounted it into a vice at work. I tried to use the
    handle on it to bend the tubing but couldnt get any leverage, by putting the handle in the vice,
    I could use my body weight and hold the tube. I made a bend the opposite direction, and it
    seems to clear now :

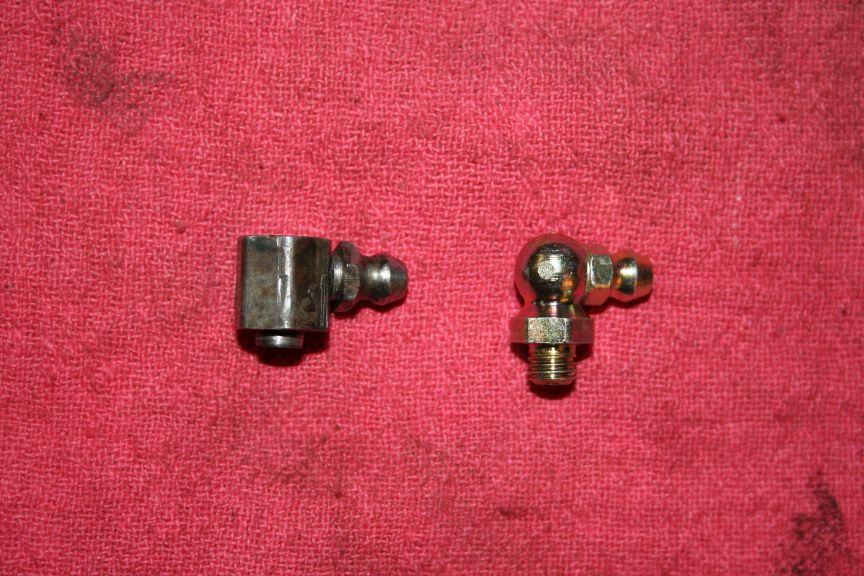

    I also picked up a new 90 degree threaded zerk, I will take the valve apart to install a new seal
    pad on the pitman arm (it broke while I was cleaning it - hard as a rock) and tap the new zerk
    into the valve and go back and remove the protruding threads on the inside.

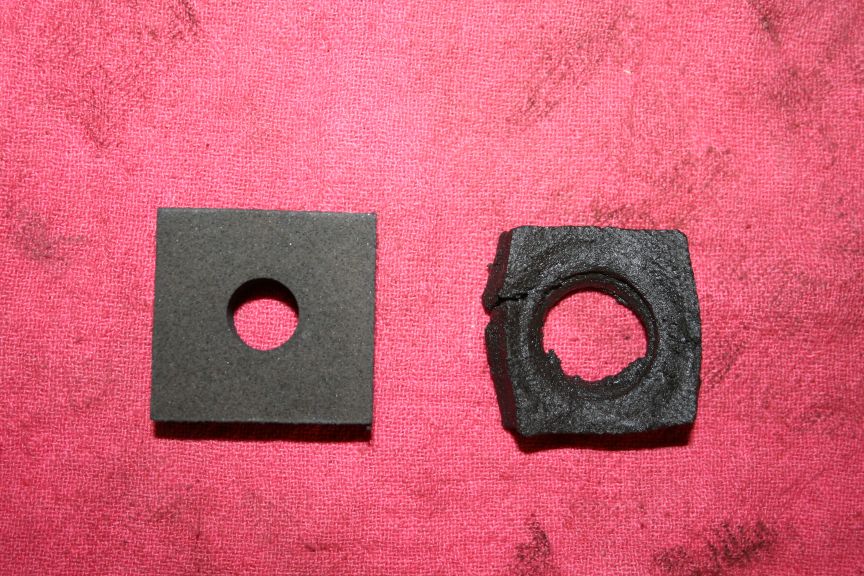

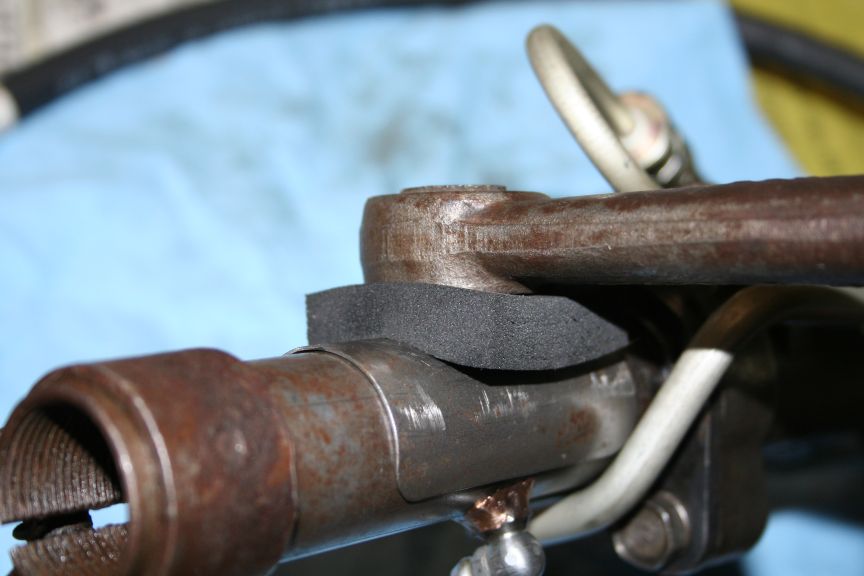

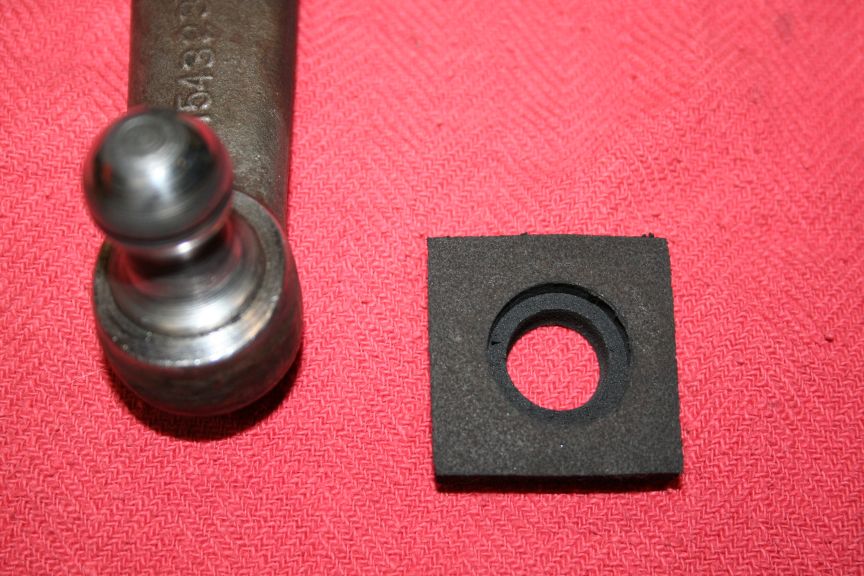

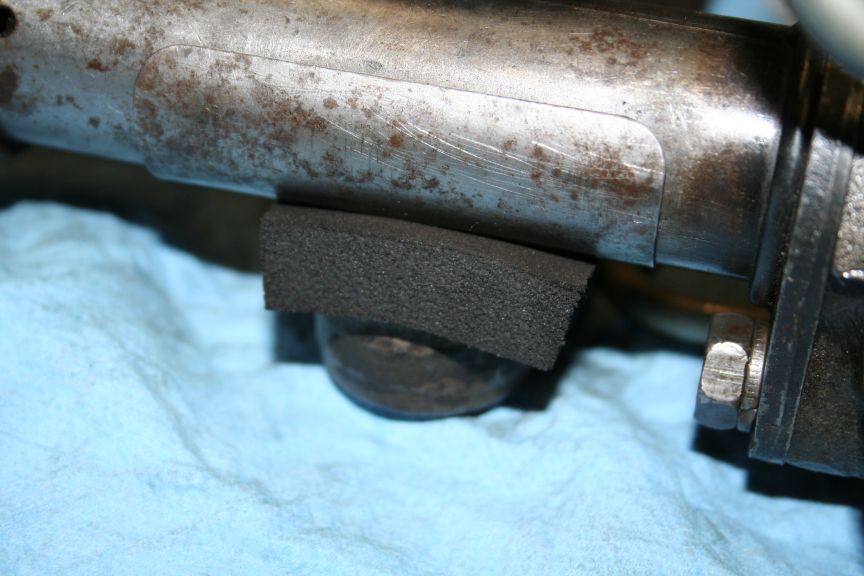

    Here is the seal block I made and the old one, I measured the shaft on the pitman arm tonight
    and it seems to be .615, and made the hole in my seal pad .500, so I might open it up to .625.
    The material is some scrap .500 thick Rubatex closed cell neoprene "bun". Thoughts?



    Tom

  13. #13
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    I am going to open the hole up in all 4 test pieces to .620. The material I am using is .500 thick
    so it should compress to about .250 at the thinnest point. The other option I have for material
    is .875, which seemed too thick. From what I can tell by looking at the old part, it started off
    .500 thick, its a tad under that now, but the material will shrink a little over time.

    Tom

  14. #14
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728

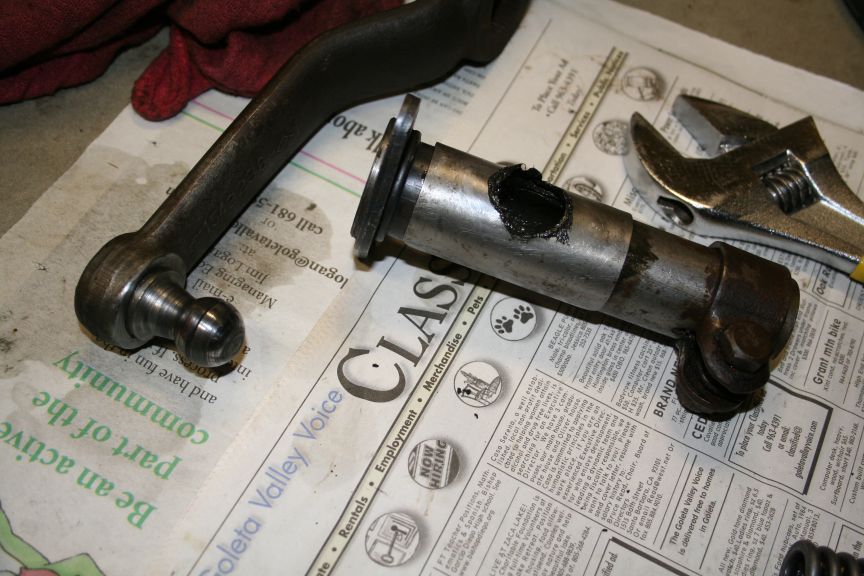

    OK .. NOW what comes off?? This thing wont come apart!



    My control valve doesnt want to come apart, I thought by taking the reach rod off
    I was going to magically expose some secret compartment and Gollum might come out
    and help me with "My Precious".

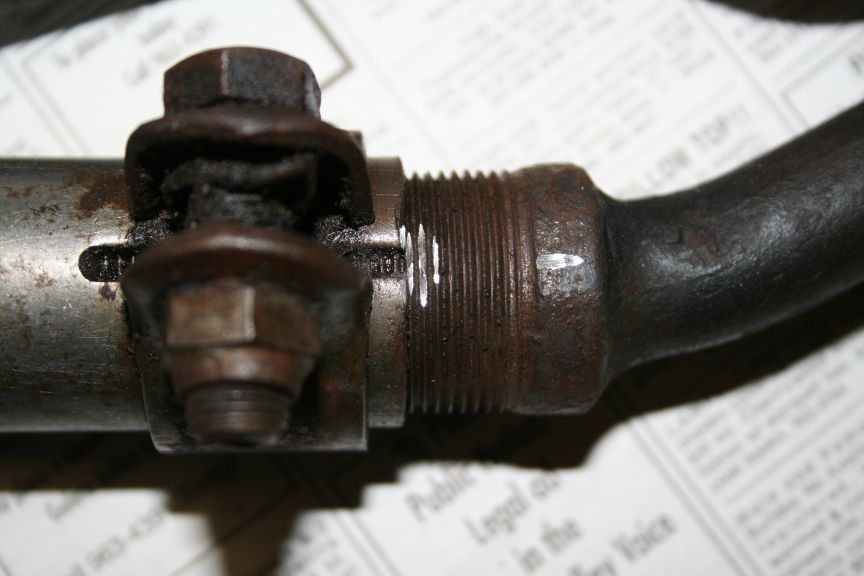

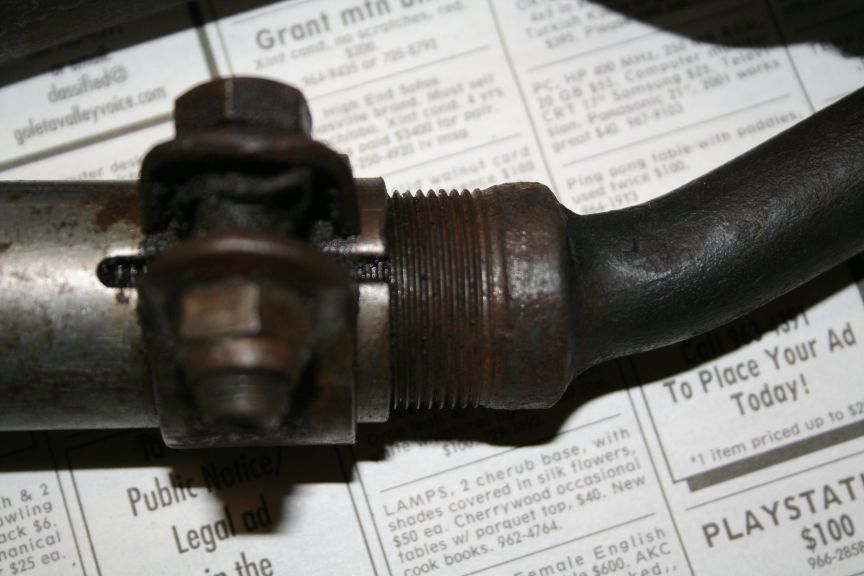

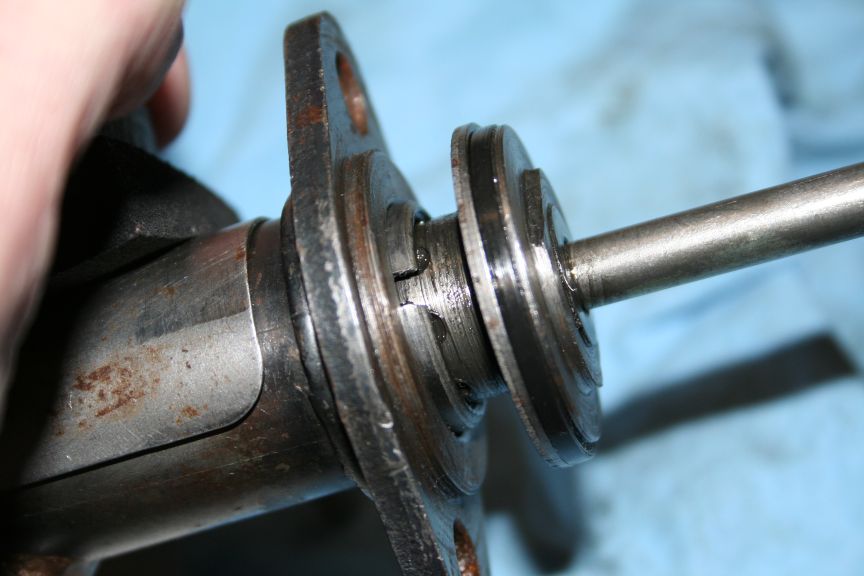

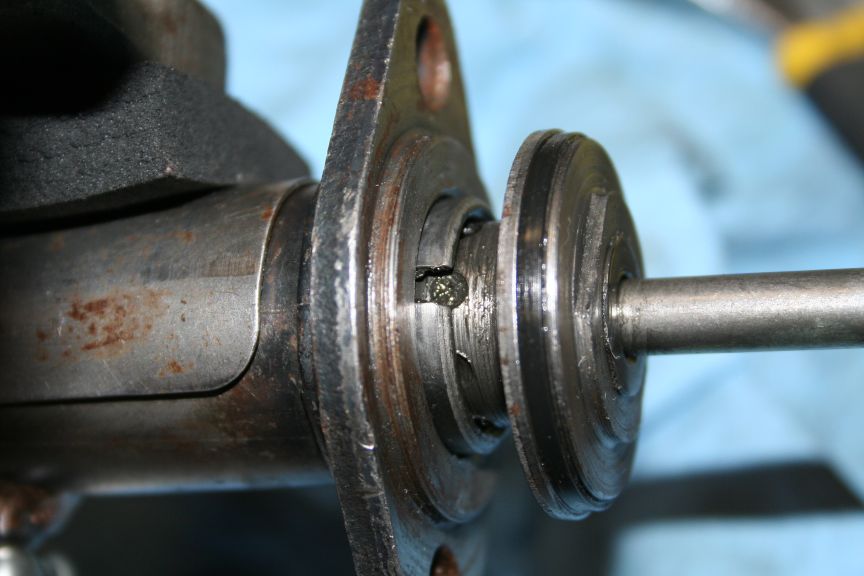

    I made some marks with my dremel on the exposed threads :



    Unscrewed it :

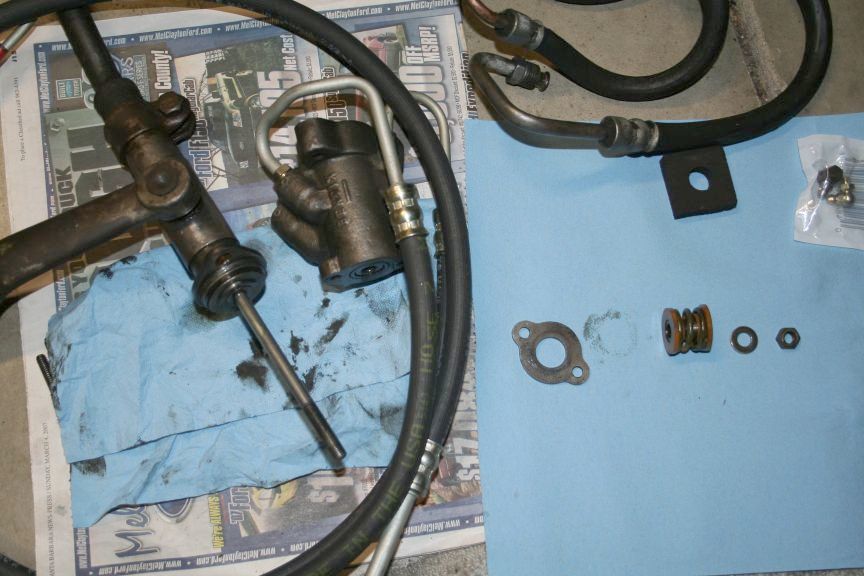

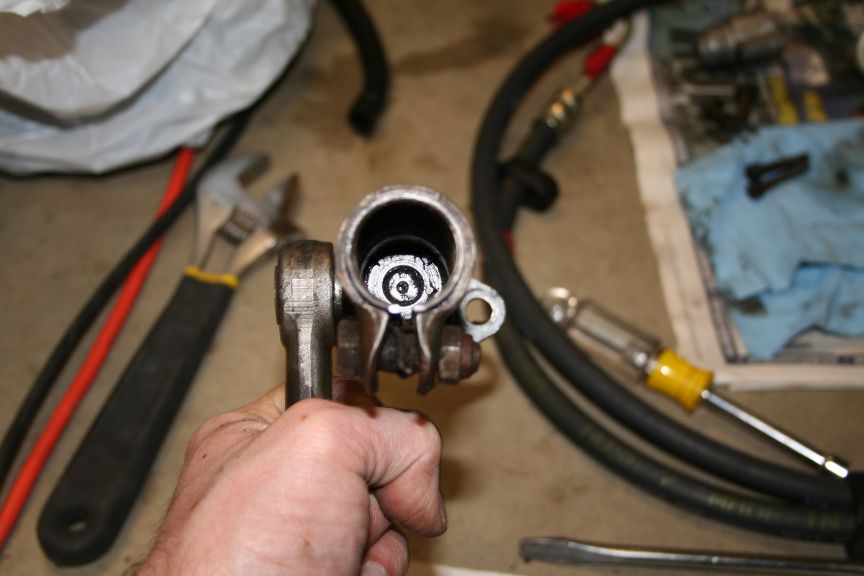

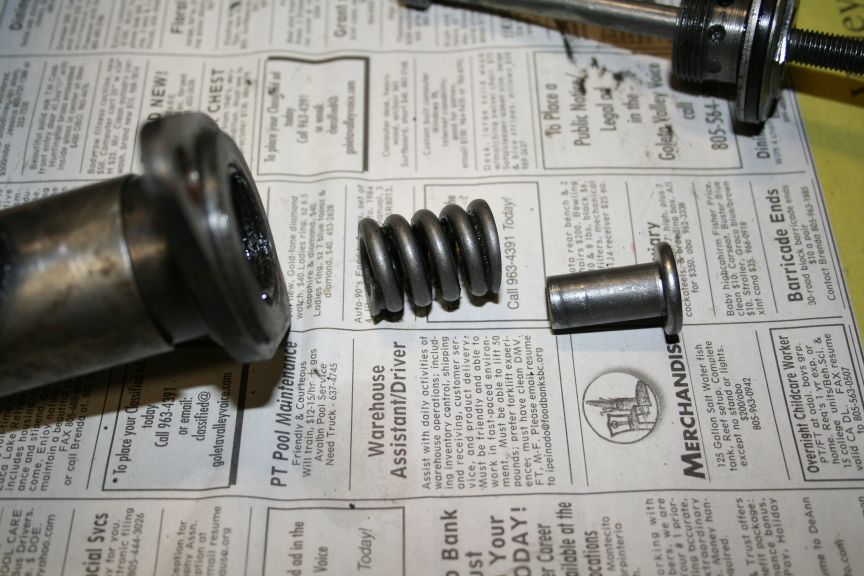

    Nothing in there :

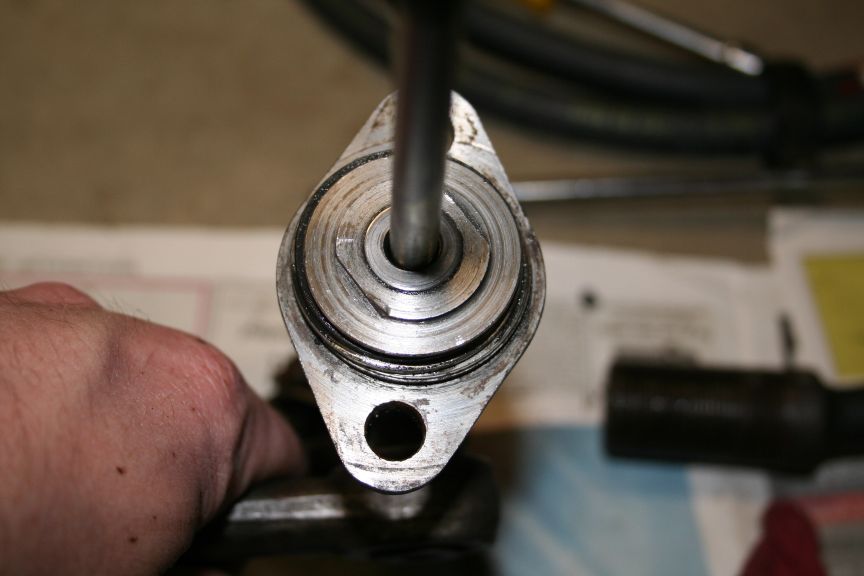

    This thing has flats on it, but it wont budge :



    Tom

  15. #15
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    Quote Originally Posted by Mike View Post
    I think you are at step 6 of the disassembly instructions from the Avanti manual I sent. The part that holds the pitman arm ball, and that the reach rod screwed into, is called the "actuator assembly". The rod that extended through the valve body is the "spool bolt". Step 6 says pull the spool bolt out of the actuator assembly a little, and you will see the lockpin for the stop screw, that you are having trouble with. The actuator assembly is often clogged with dirt and half dried grease. You may have to soak the assembly in kerosene, to free it up enough to take it apart.
    I'll send the picture from the Avanti parts book. It's clearer than the one in the manual.
    Follow the steps in the manual. Avoid "short cuts". You can do a better job cleaning the valve body without the hoses. Mike M.
    OMG was that simple. Once the pin is out the thing on the end it easy to turn :













    Tom

  16. #16
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728

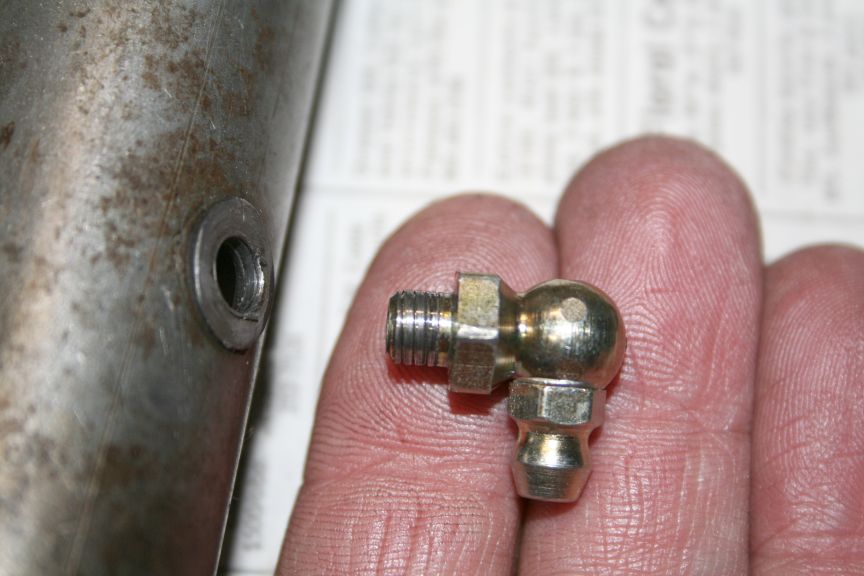

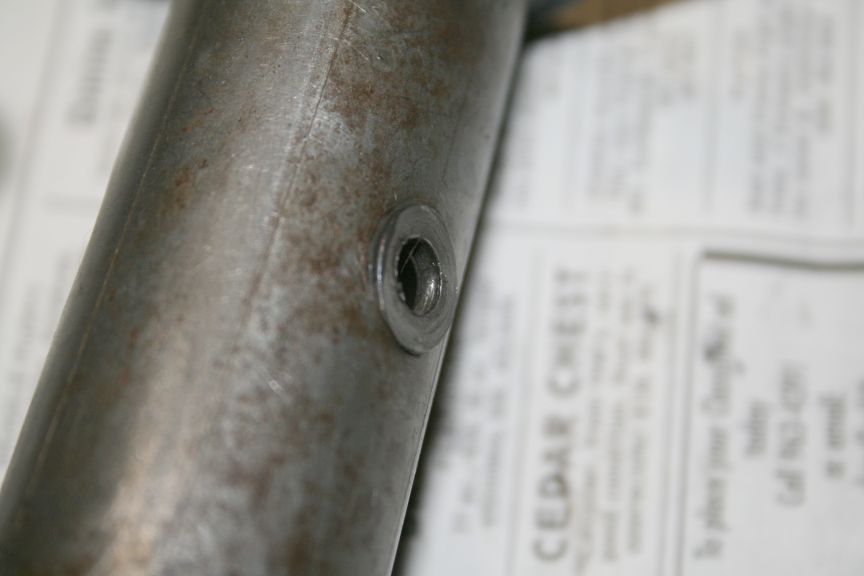

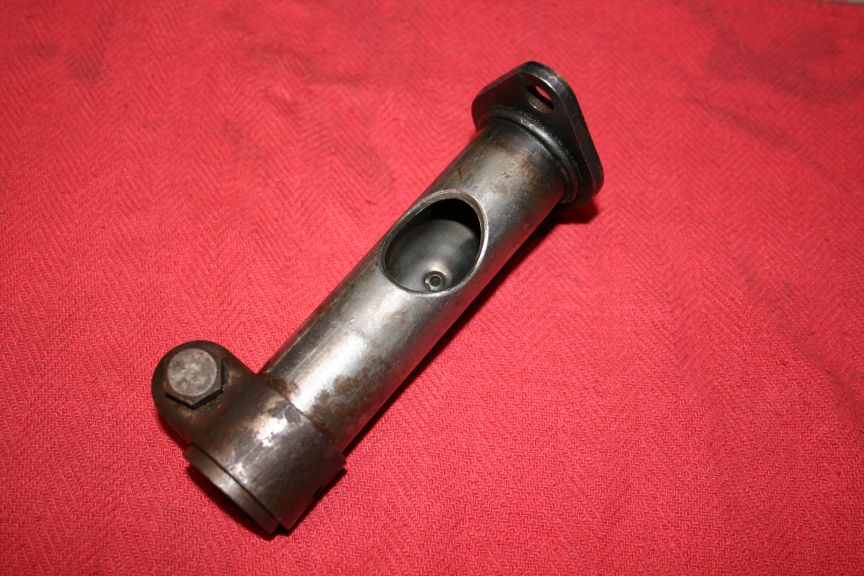

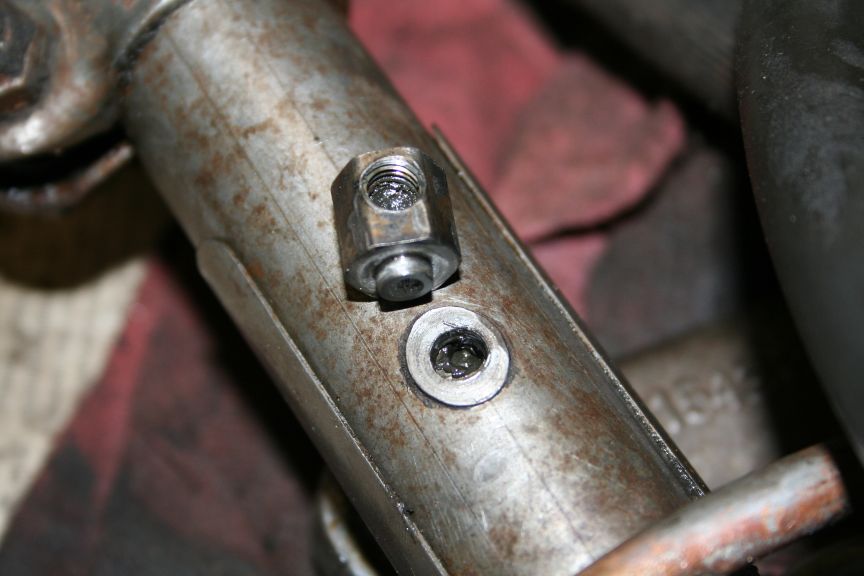

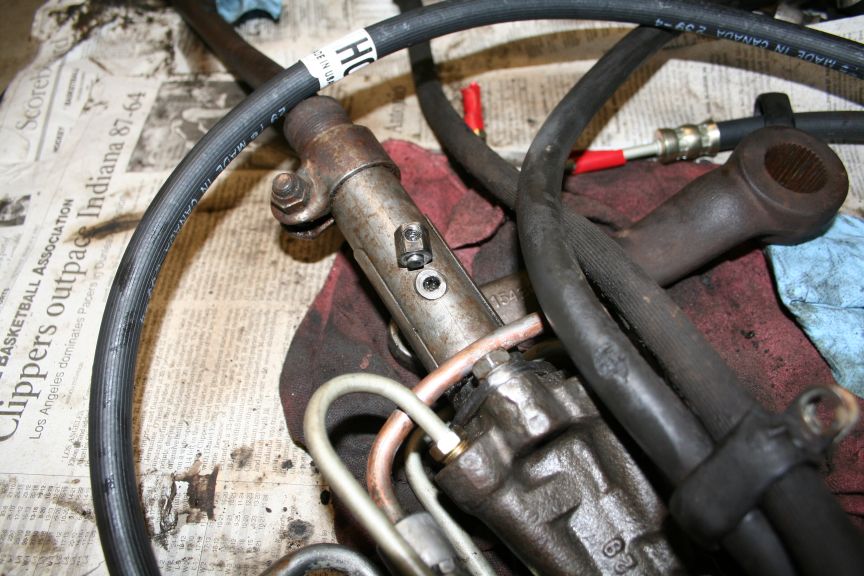

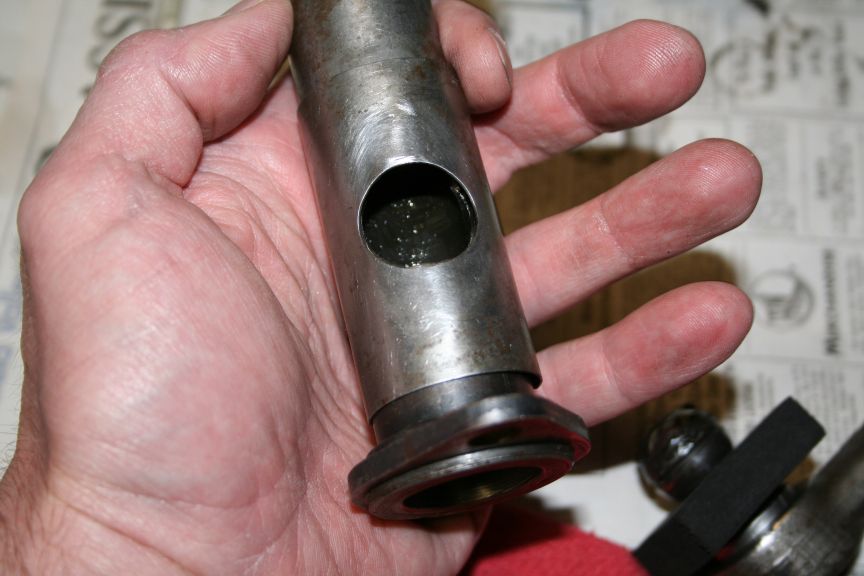

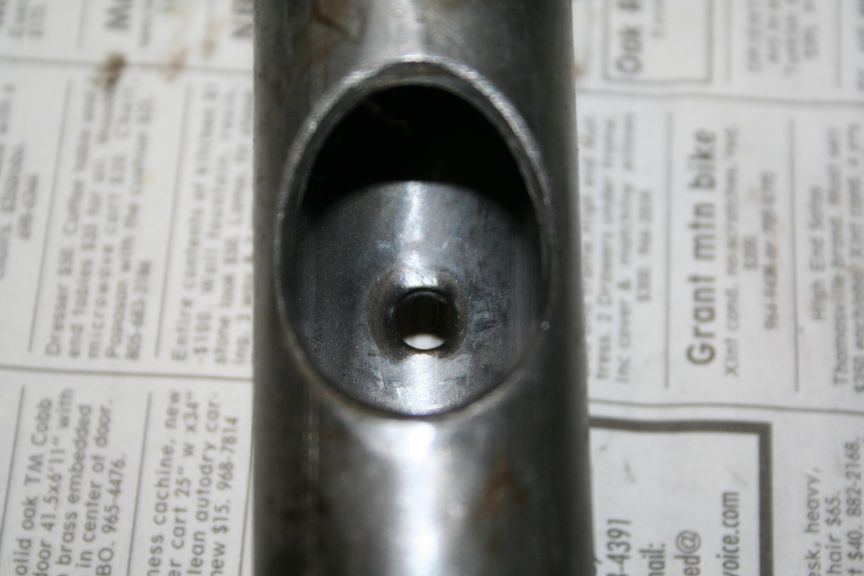

    Well .. I tried to thread the new zerk into the housing and this thing must be made of some
    HARD material. It took the threads right off the zerk!







    There isnt much material there to tap, thats one problem, the next is that there is a tube
    that slides IN the housing, and must clear the zerk on the inside. That leaves about 1 to 2
    threads - not enough. I thought about welding a Zerk "bung" on there, but since I had the

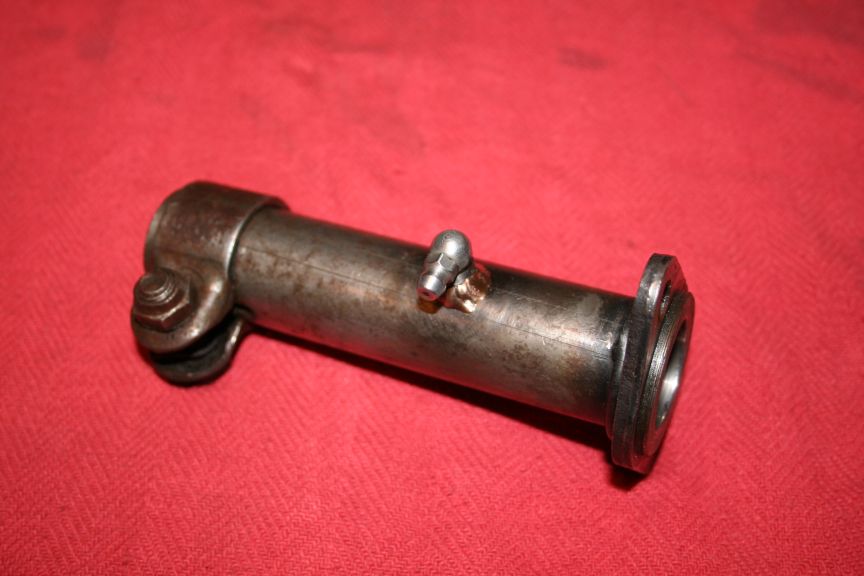

    one in the picture with me, I just had that welded on. I ground off most of the threads so
    my friend brazed/welded it on - DONE!:







    Tom

  17. #17
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728

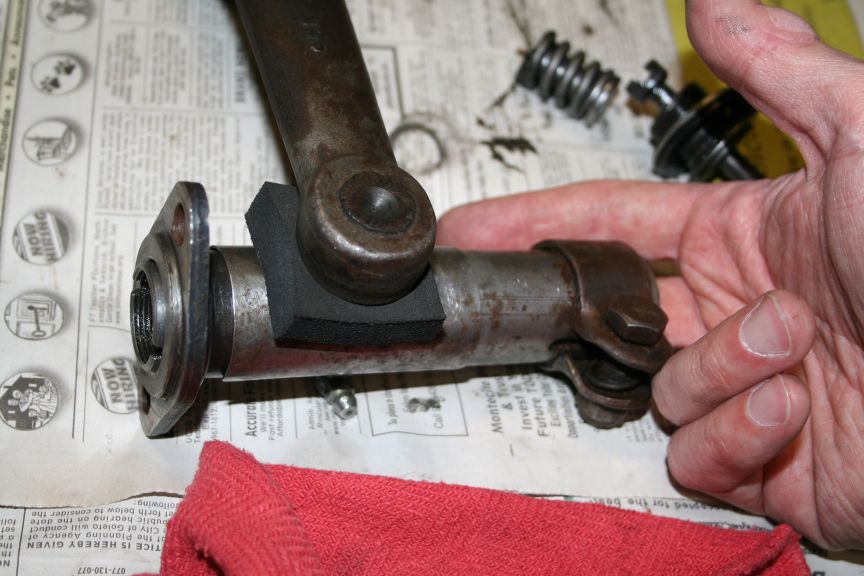

    I made a couple little changes to the seal :



    Then started putting it back together, assembly is just reverse of dis-assembly ... right? :

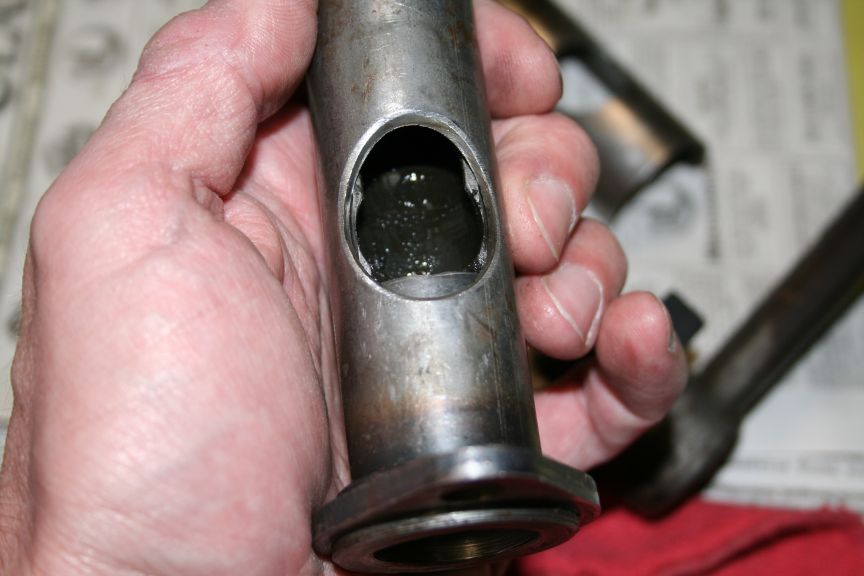

    Ball goes into the socket :



    Add the sliding cover :



    Put them together :



    thread the other pieces back in :

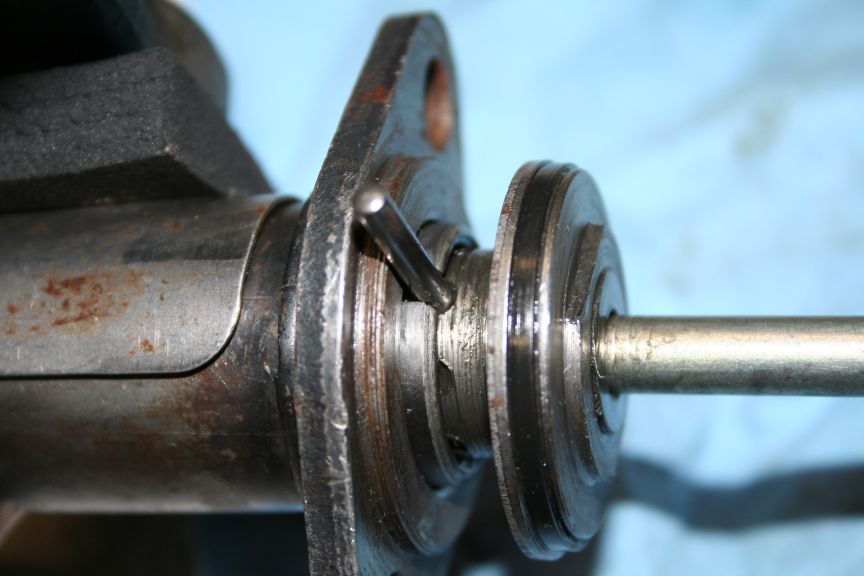

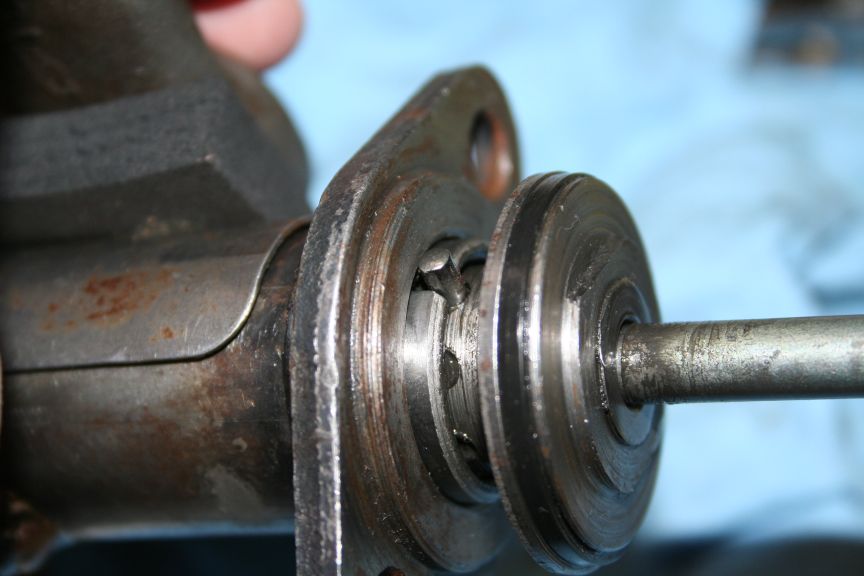

    Line up the pin :



    and put the pin back in :





    Tom

  18. #18
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728

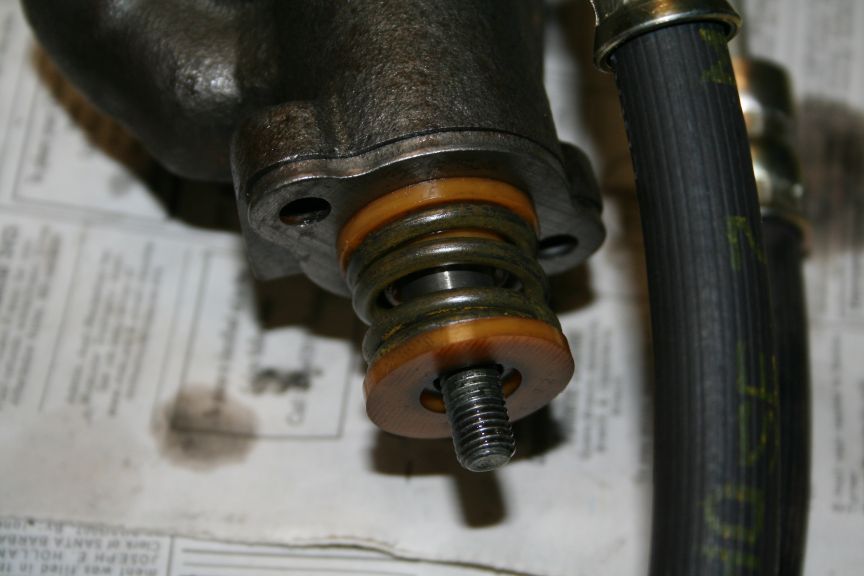

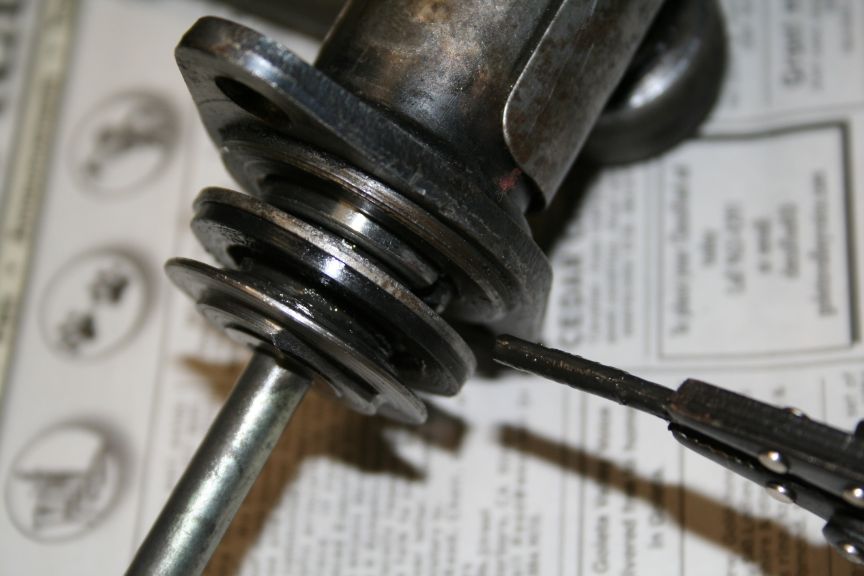

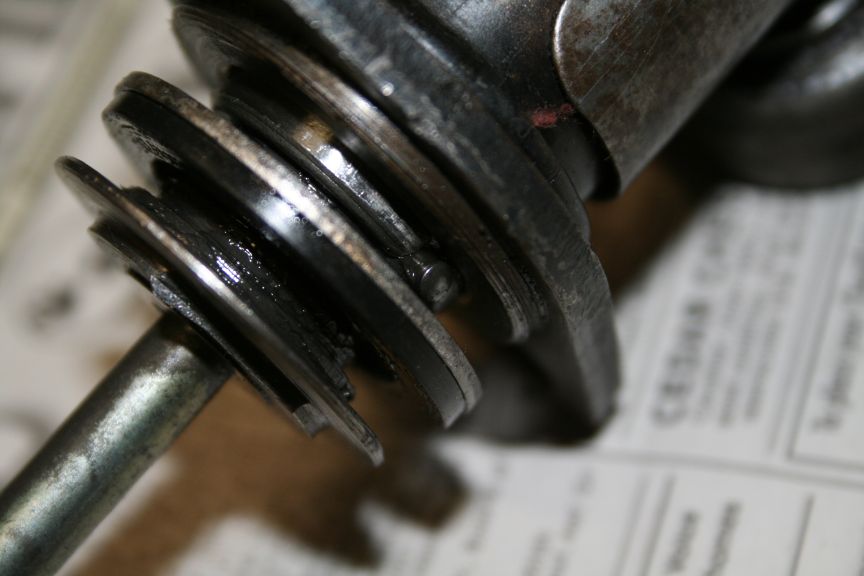

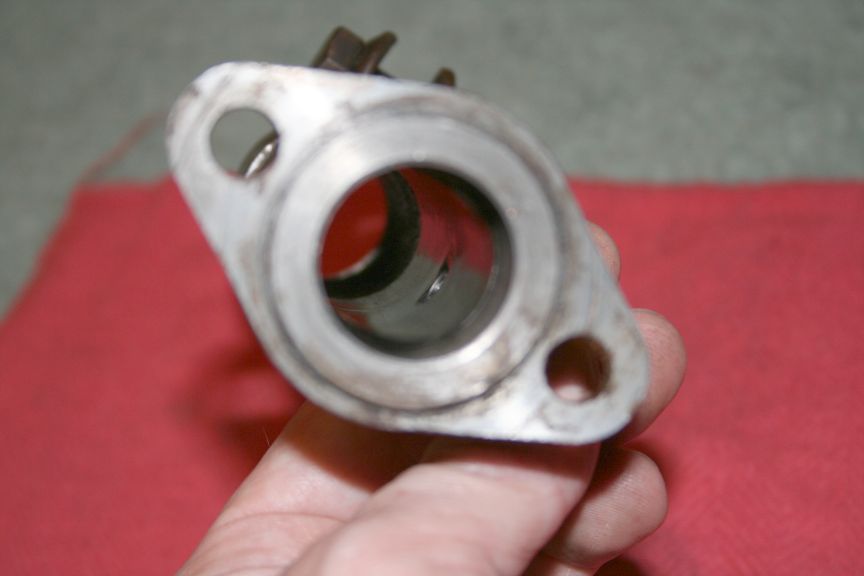

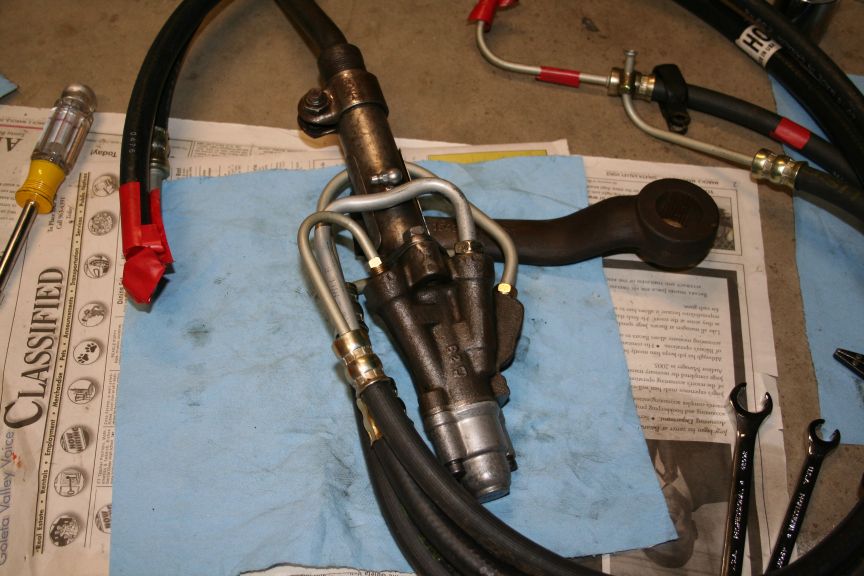

    Put the two halves back together :

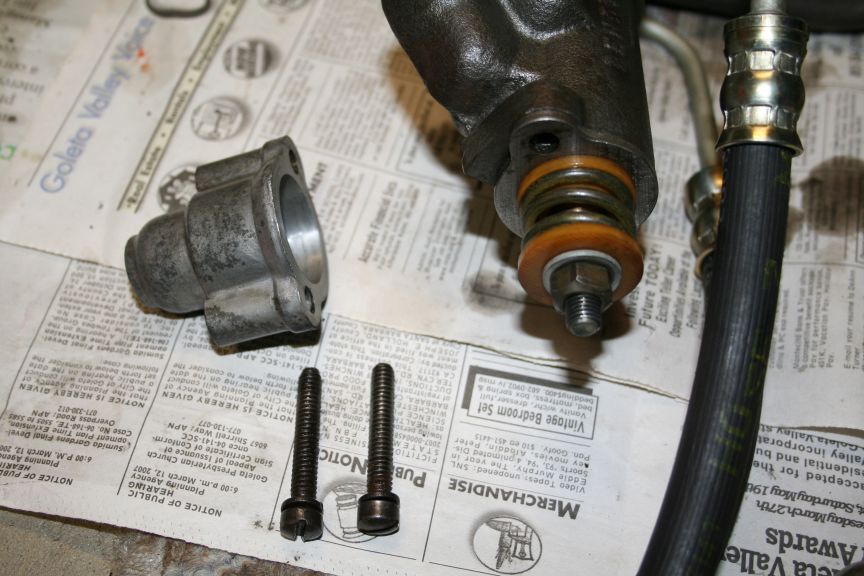

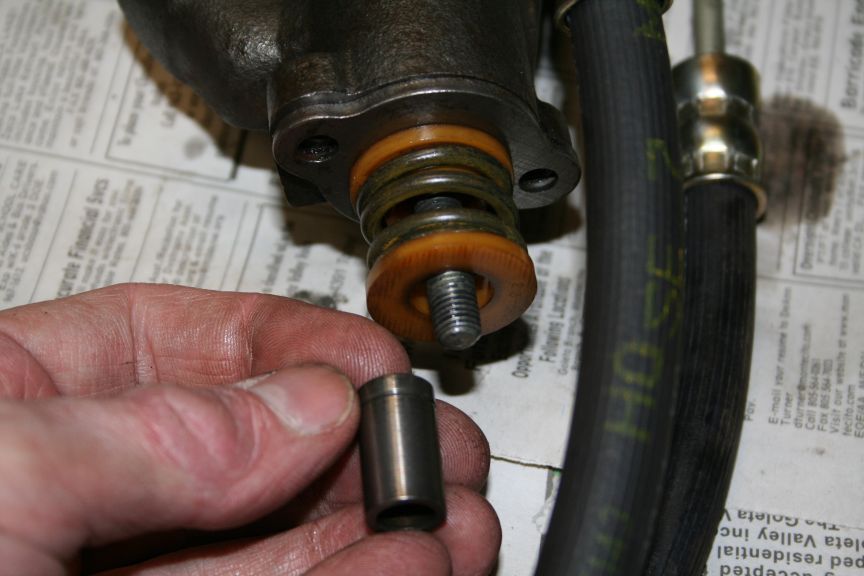

    The pieces in the rear :





    The nut :



    The cap and two bolts.

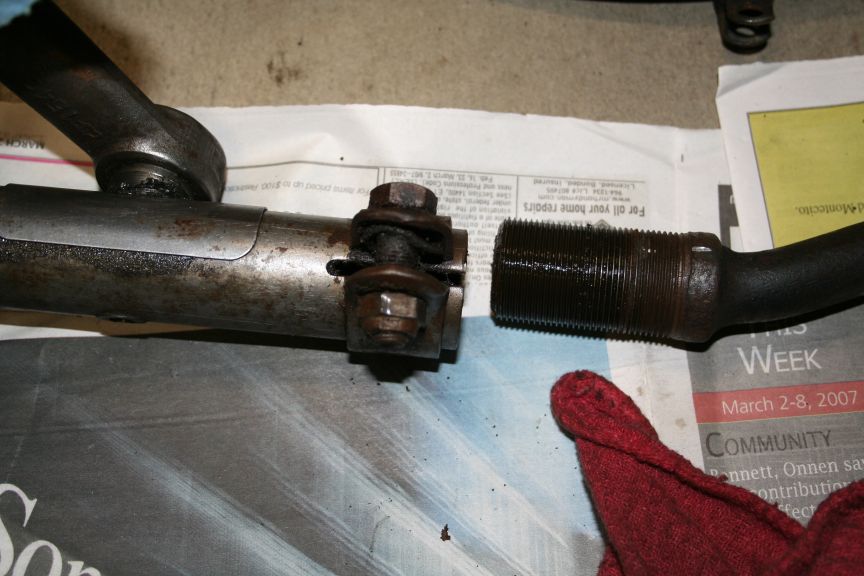

    Thread the tie rod end back on to your marks and tighten the clamp. Done.

    Tom

  19. #19
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    Once I got it back together, the steering was overly twitchy, like too much assist.

    Quote Originally Posted by r1lark View Post
    Tom,

    Pull the small aluminum cover off the end of the control valve (held on by two screws) and adjust the self locking nut that is under the cover. Loosen it one or two flats max, replace the cover, and drive the car. See if this helps the 'darting' situation. I think it will. Keep adjusting until the steering responds to your liking.

    This nut is, for a lack of a better term, the sensitivity adjustment for the control valve spool. I think you have this adjustment too tight. If the steering is slow to return to center, loosening this nut will also help that.

    On my '64 GT, I spent several hours tweaking this adjustment, driving the car, adjusting, etc. At the end, I was only moving the nut a very small amount. The time was well spent tho, and when it was finally adjusted it had no wander, the steering was very responsive, and I was able to easily drive the car with two fingers on the wheel even on rough roads (even on the rough roads around Dearborn when we went to the National Meet there).

    Paul
    What a difference!! I just turned the nut back 1.5 flats and buttoned it up. Feels like a new car!
    Steering is tight and responsive. I am very impressed its THIS good since I have yet to do the tie
    rods and the bellcrank. I am VERY pleased! It so good I dont want to adjust it anymore to see if
    it gets better. Its just THAT good!

    THANK YOU (again) PAUL!

    Tom

    Hope this helps someone in the future ... only took me over 5 years to get back to this.

  20. #20
    President Member JoeHall's Avatar
    Join Date
    Aug 2007
    Location
    RADCLIFF, KY, USA.
    Posts
    2,607
    Thanks Tom,
    My 62GT has never turned as easily as every other PS equipped Stude I've owned. If the steering wheel is turned to quickly it chirps the belt, i.e. when parking. I have just learned to live with it and give it its time. Over the years, it has went through a couple of pumps, and no change to the steering. I had thought maybe the hoses had became internally swollen and restricted over the years, and bought a new set off SI a few years ago, but never got round to installing them.

    One of these days, guess I'll rebuild the control valve, and see what happens. This thread will give me courage to tackle it myself.

    Thanks Again,
    Joe H

  21. #21
    Speedster Member
    Join Date
    Feb 2005
    Location
    Ft Wayne IN
    Posts
    313
    Dont forget to do the hose seats. I rebuilt mine a few years ago and installed new hoses from SI. The leaky valve was better but it leaks at the fittings now. The kit I had didn't have the hose seats. I had a hard time locating the. Local place just looked at me cross-eyed when it explain what I wanted. I found this site though and I am about to place and order for the kit. https://www.stangerssite.com/CVparts.html

  22. #22
    President Member
    Join Date
    Feb 2006
    Location
    Santa Barbara, California, USA.
    Posts
    3,728
    Well, its been quite a number is years since I did this repair and it hasn't leaked a drop of fluid in
    all that time, I figure I'm good. Perhaps your fittings were not tightened enough, always use the
    correct flare fitting wrench when working on these and get the goodntight. If you noticed wear
    I can see changing them out, but in 30 years of Studebaker maintenance I never replaced one.

    Worthwhile looking for excessive scoring or gouges.

    Tom

+ Reply to Thread

Quick Reply Quick Reply

Rich Text Editor

Similar Threads

  1. Power steering controle valve 62 hawk
    By dallastx75208 in forum Tech Talk
    Replies: 8
    Last Post: 01-31-2010, 11:39 AM
  2. Power steering control valve
    By jd-stude in forum Tech Talk
    Replies: 2
    Last Post: 10-05-2008, 08:27 PM
  3. power steering control valve 2
    By stuvw2mny in forum Tech Talk
    Replies: 5
    Last Post: 08-16-2006, 12:43 AM
  4. Power steering Control Valve
    By abndad in forum Tech Talk
    Replies: 11
    Last Post: 07-24-2006, 09:51 PM
  5. Power Steering Control Arm Valve Assy Slack
    By 11SecAvanti in forum Tech Talk
    Replies: 3
    Last Post: 07-12-2005, 11:11 PM

Tags for this Thread

Posting Permissions

  • You may post new threads
  • You may post replies
  • You may post attachments
  • You may edit your posts
  •
