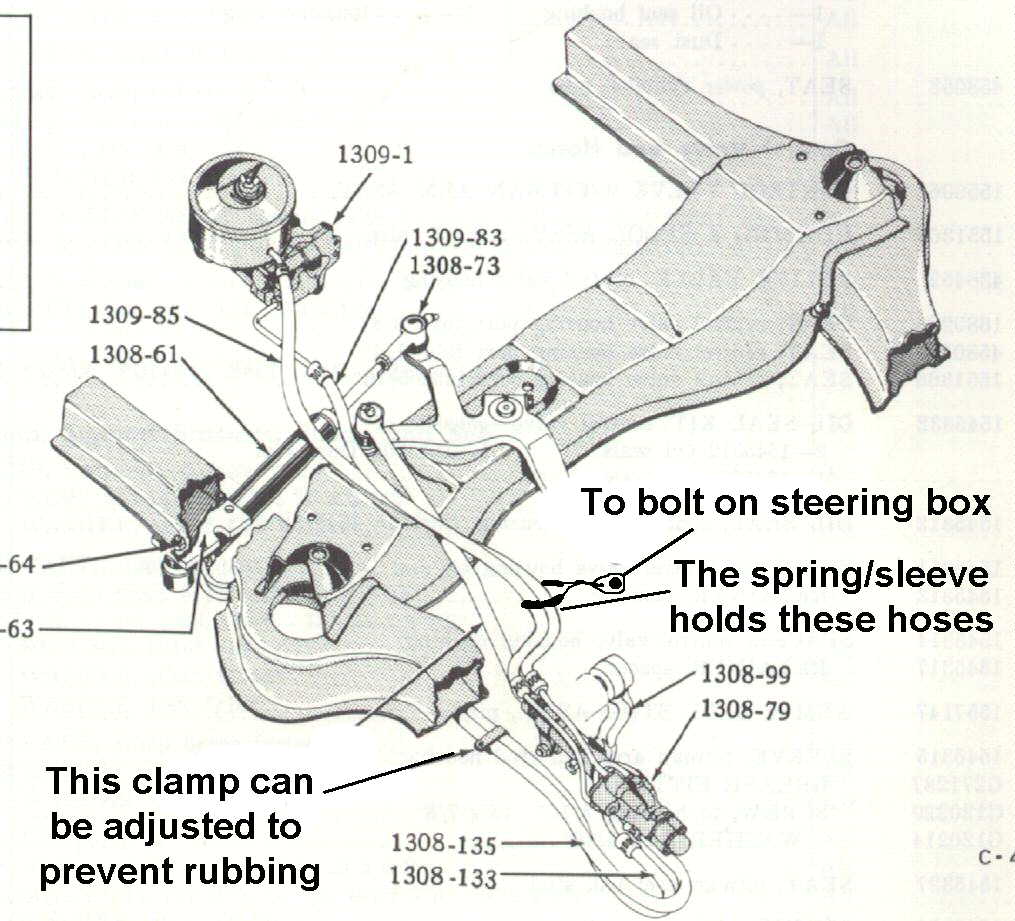

(Power Steering hoses)

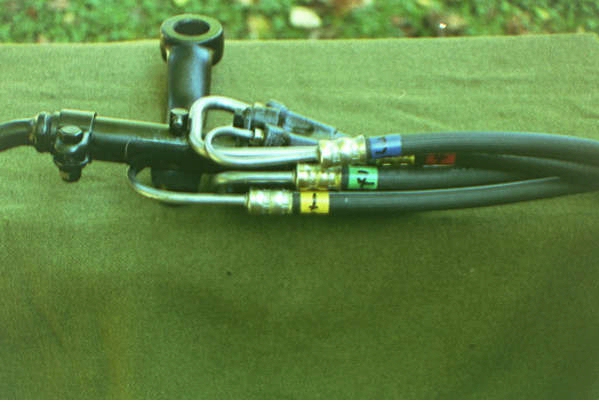

1

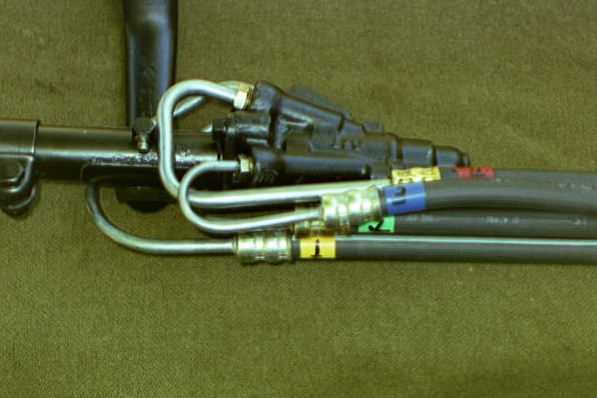

control valve, bottom

2

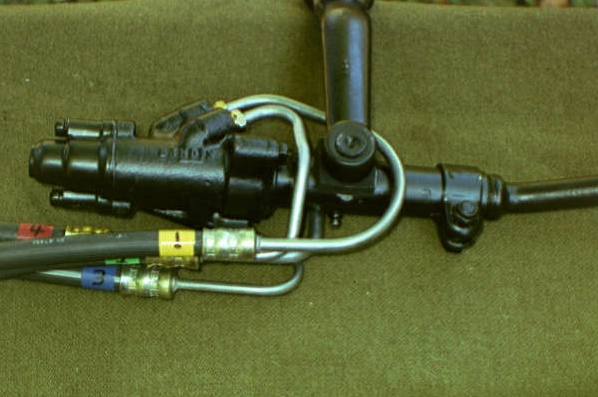

Control Valve, Engine Side

3

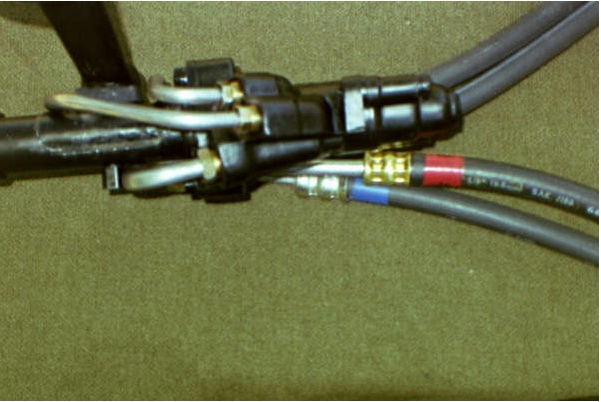

Control Valve, Frame Side

4
Control Valve, Top

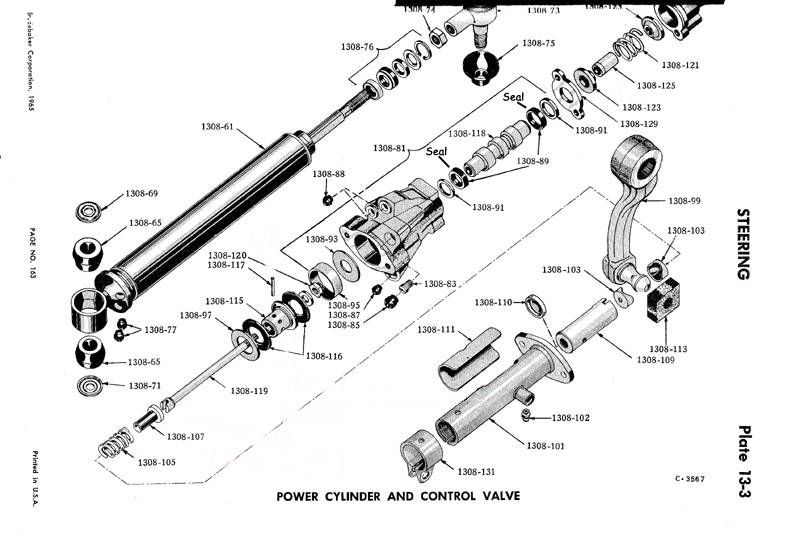

This is the control valve from my '64 Avanti, with new hoses from Stude International. I had to "adjust" the positions, after I mounted the valve in the car; but this is where I started.

#1 Yellow Ram, Bottom, Right Turn
#2 Green Ram, Top, Left Turn
#3 Blue Pump, Pressure
#4 Red Pump, Return

Mike Mudd, May 2002
