 The Correct PCV Valve for R1 and R2
 New Topic  Reply to Topic
Subscribe to this topic Subscribe to this topic
 Send Topic to a Friend
 Printer Friendly
Author Previous Topic Topic Next Topic

StudeRich
Commander Member

USA
6033 Posts

Posted - 06/03/2009 :  3:53:21 PM  Show Profile  Email Poster  Reply with Quote

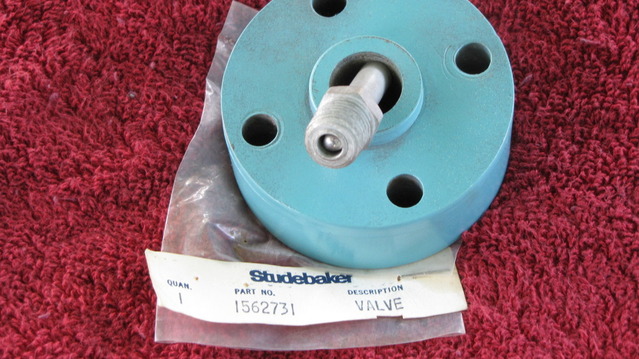

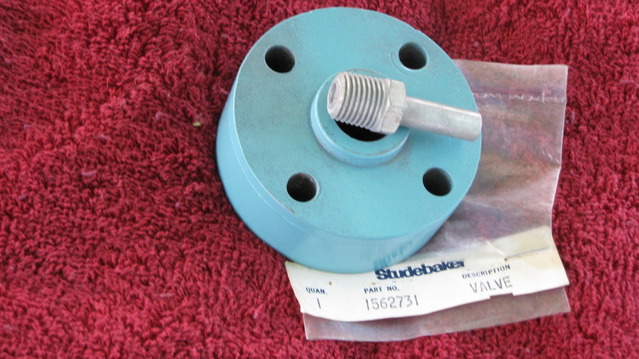

The 1562731 PCV Valve allows the correct amount of restricted flow to the Carb. (vacuum) and BLOCKS ALL FLOW from the Carb. (Backfire/Pressure)


It does rattle, probably has no spring, and seats (closes) on a tapered seat like a Carb. Float Needle in the hose end, and when Vacuum is present it restricts flow to the space space between the three flat sides of the needle & the tube.

FYI: Just to set the record straight to prevent anyone from damaging their engine, from my experience and to my knowledge this is how it works, and what it looks like.

StudeRich
