Chevy Drums for your Champ Truck, by Jerry kaiser

You convert as I have done on my Champ truck to Chevy brake drums and use any Chevy 1/2 ton 5 hole wheels

By Jerry Kaiser (SDC Member)

Overview

I went to NAPA and bought 4 -76 Chevy 1/2 ton 11" rear drums.
Next what needs to be done is machine your Stude hubs to match the center hole in the Chevy drums.
SEE PICTURE BELOW
It is important to have as close a fit as possible. The Chevy drum will mount to the outside of the Studebaker hub.
I used my brake lathe for mine but any machine shop could do it for you.
Then with your drum on the hub. You can drill and tap thru the drum and hub for a counter sunk head machine screw if you feel it is needed. I did not do this on mine and don't really see a need as long as the drum fits tight. You can buy plain or finned drums as pictured. I am including a picture of a hub that I machined and a picture of one installed on my Champ.

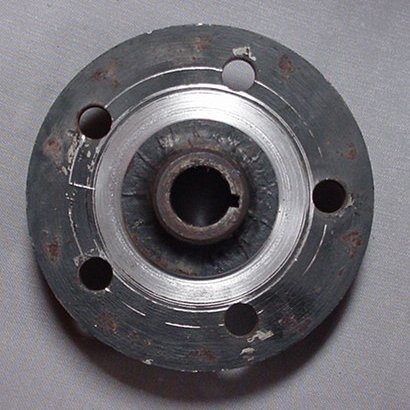

 machined studebaker hub


STUDEBAKER HUB MACHINED IN A BRAKE LATHE

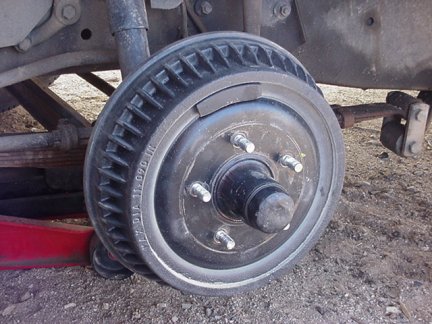

drum in place

CHEVY DRUM IN PLACE ON STUDEBAKER TRUCK


IF YOU HAVE A 3/4 TON TRUCK


USE WAGNER F3600 OR BENDIX BD60102 FOR FRONT DRUMS
USE WAGNER F3620 OR BENDIX BD60113 FOR THE REAR DRUMS
