Bob's Resource Website (2007)

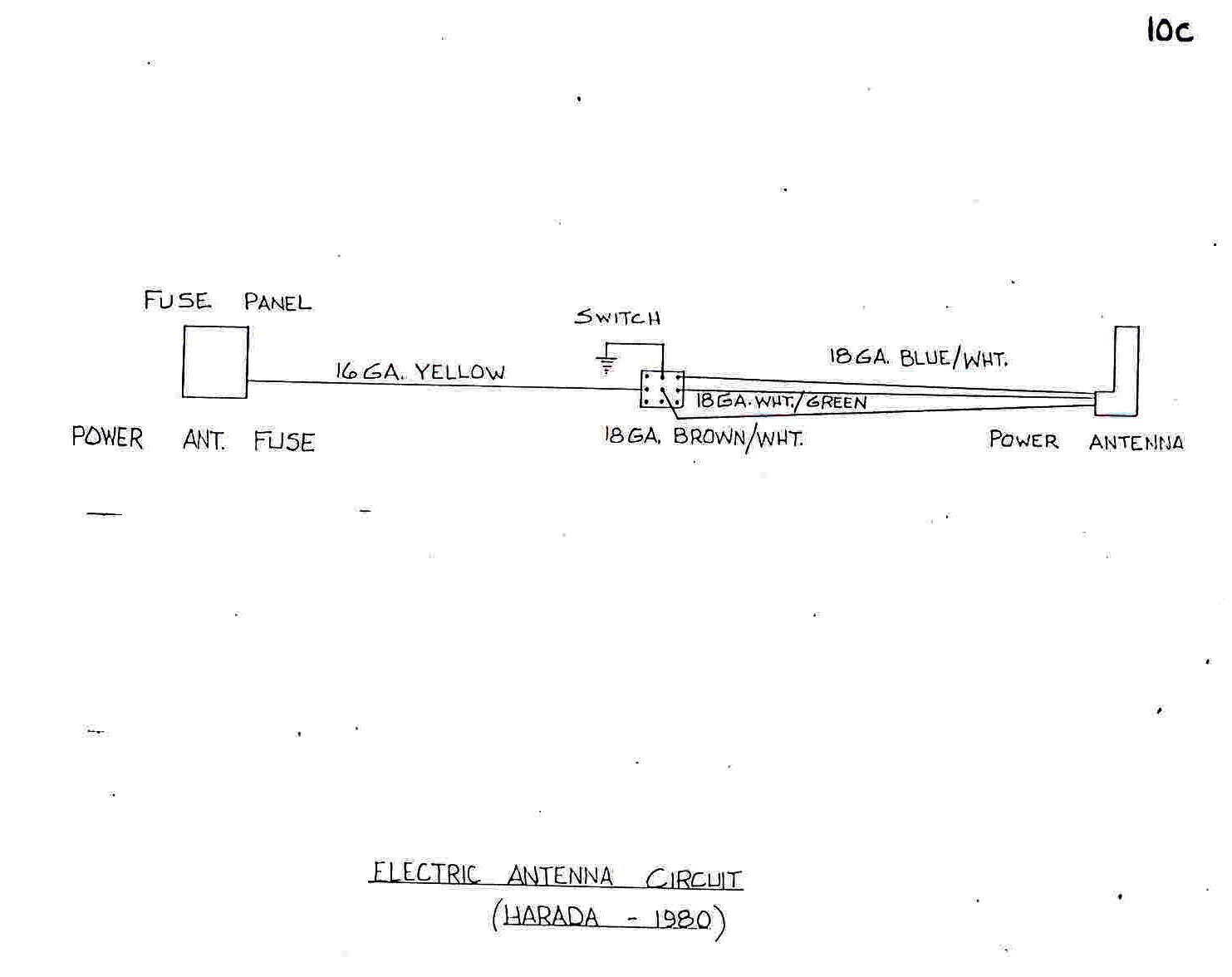

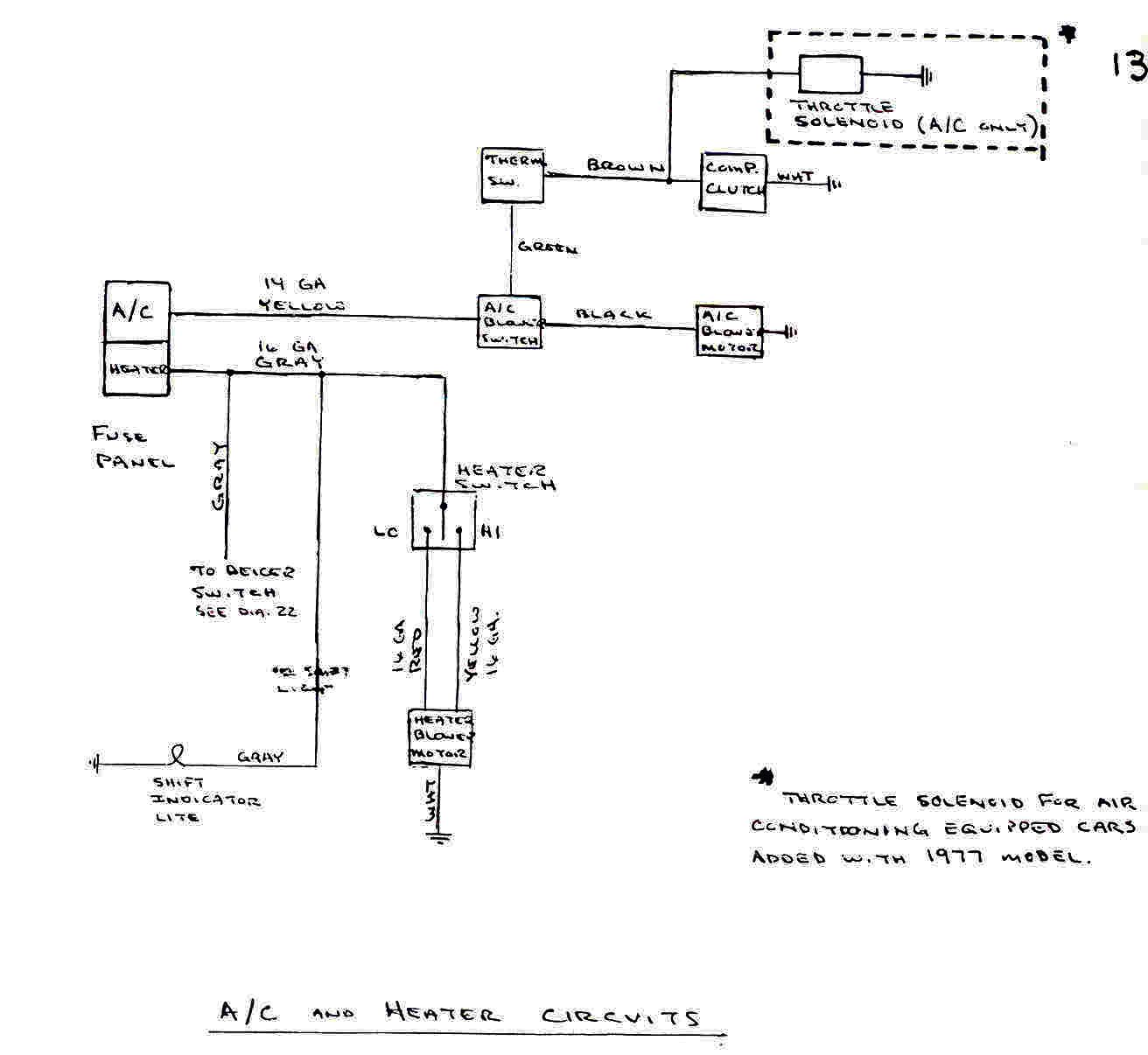

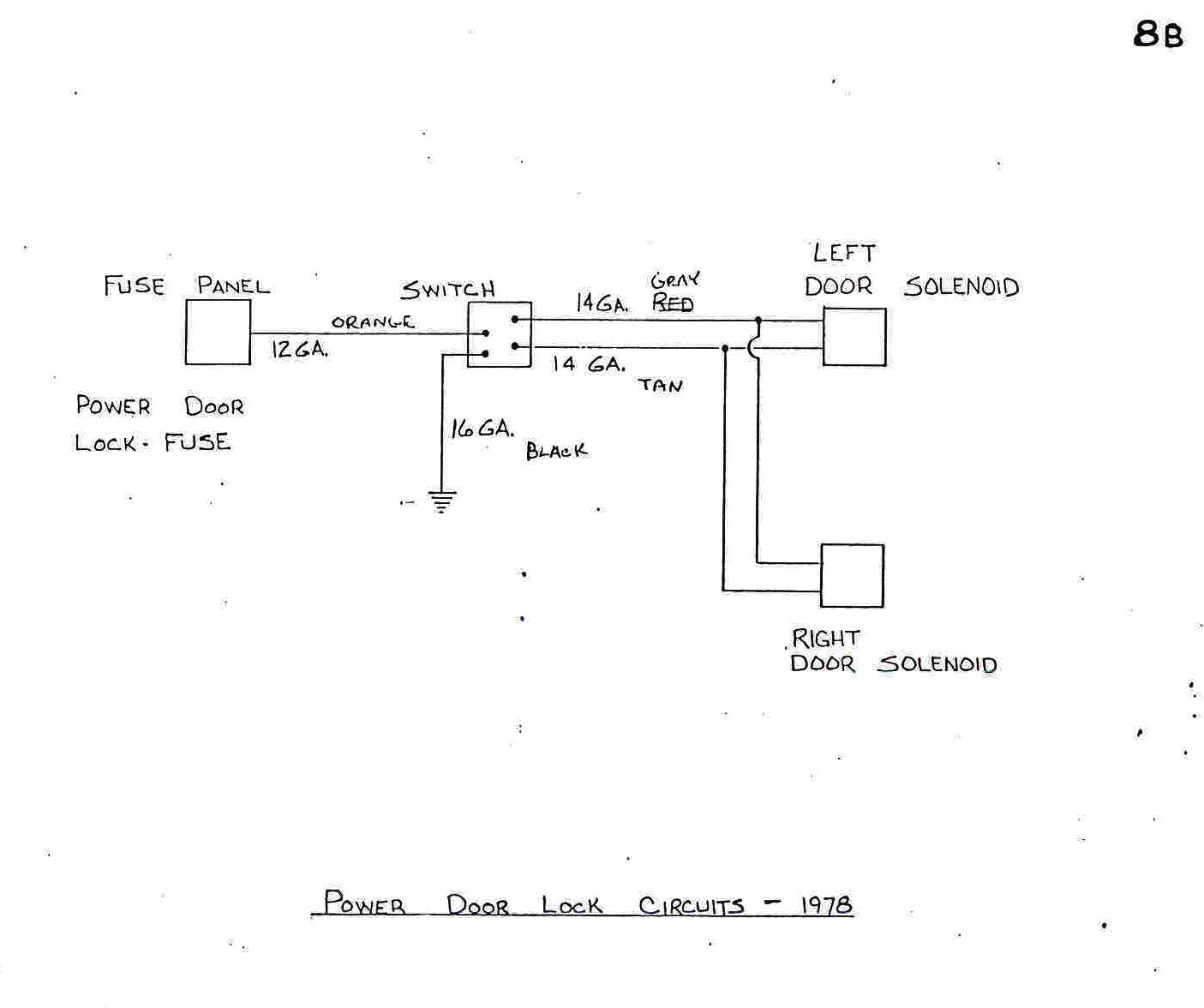

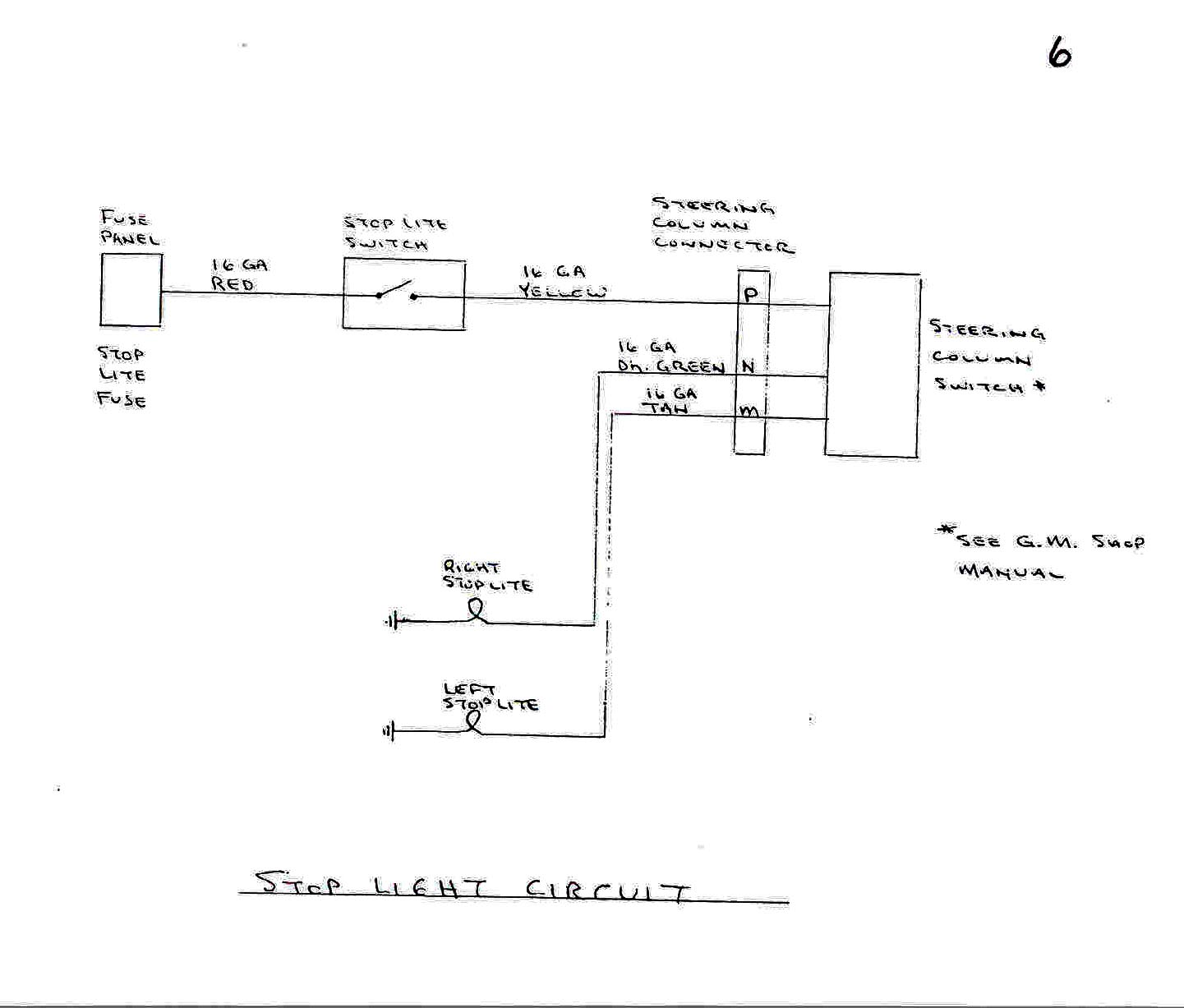

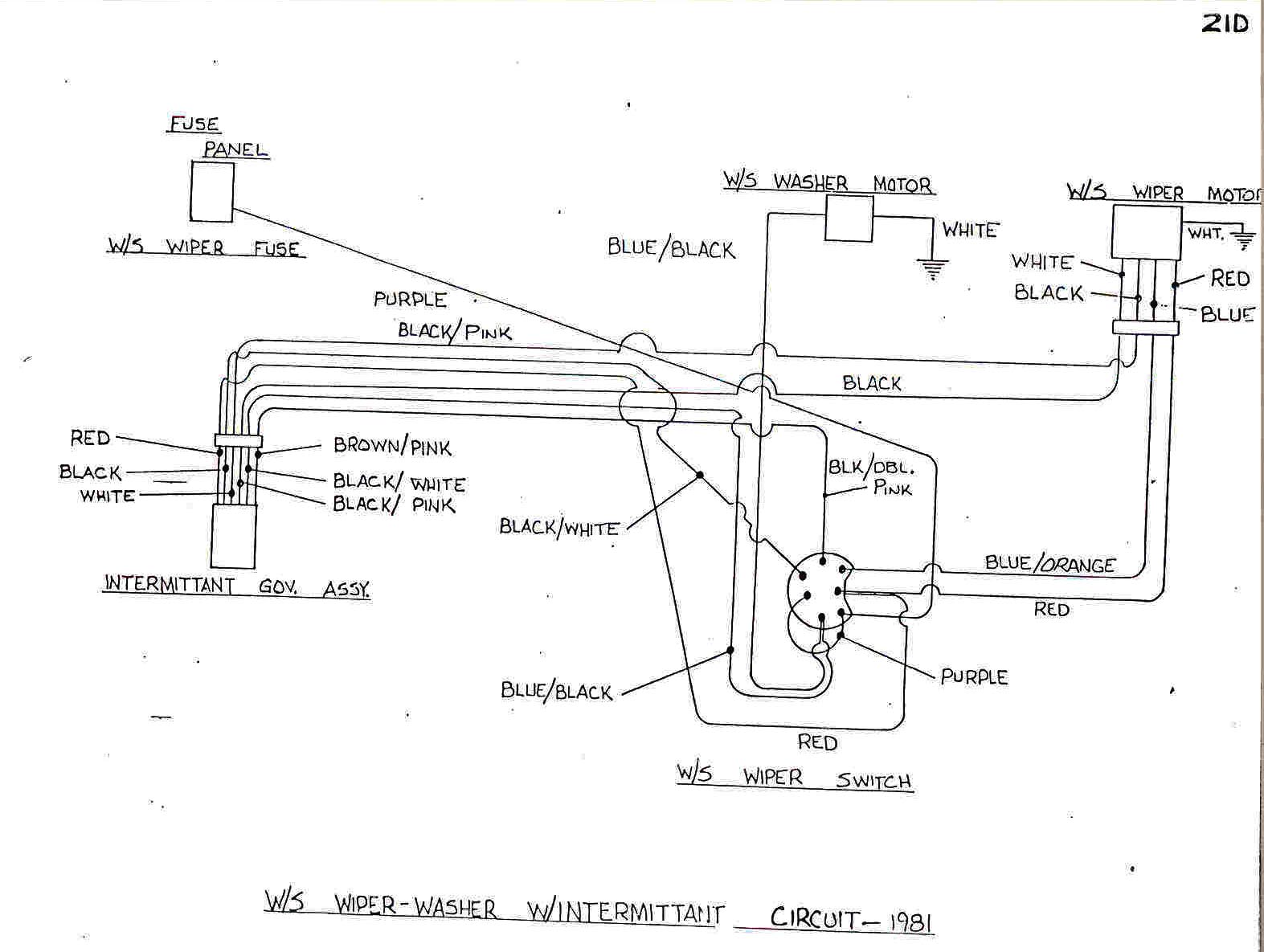

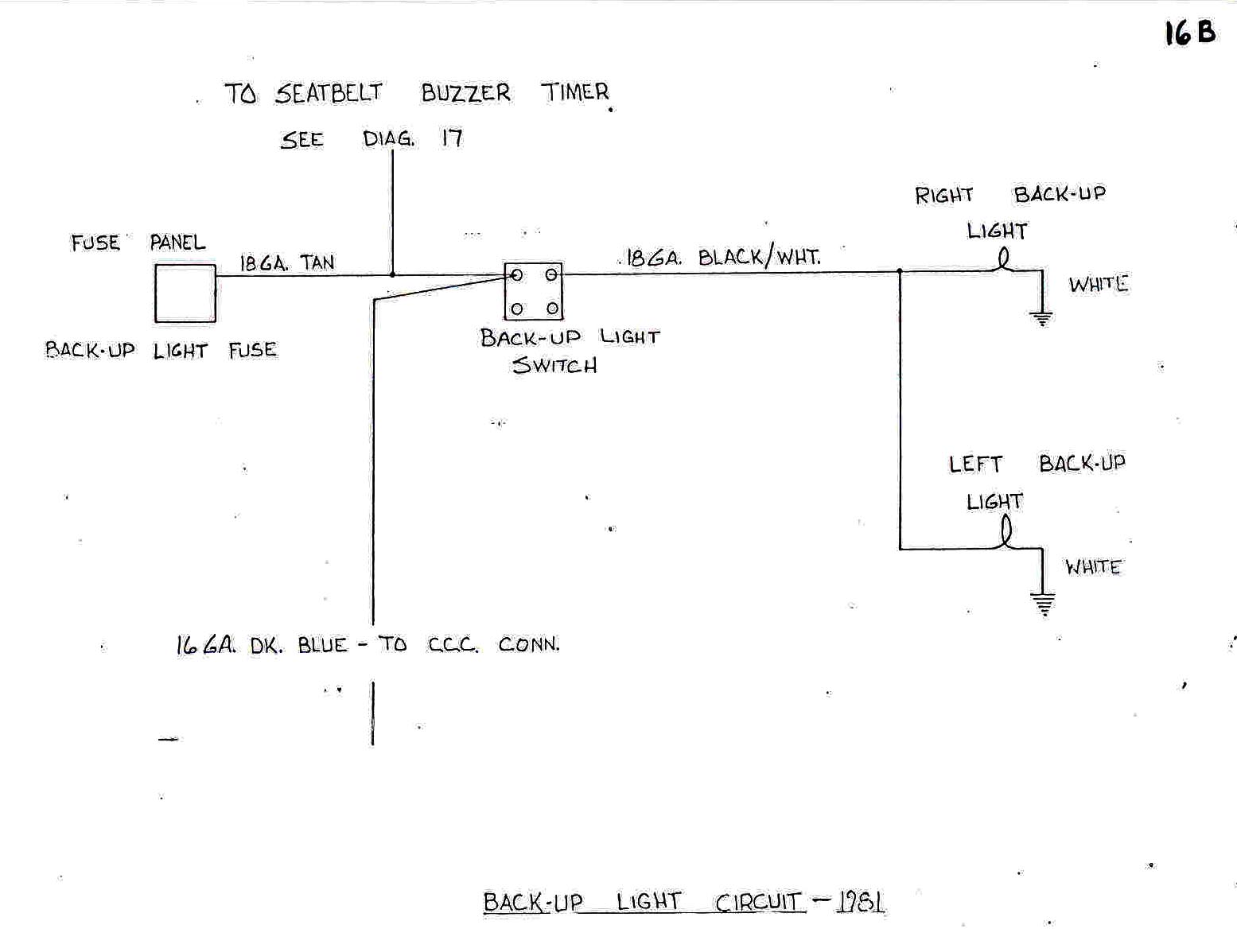

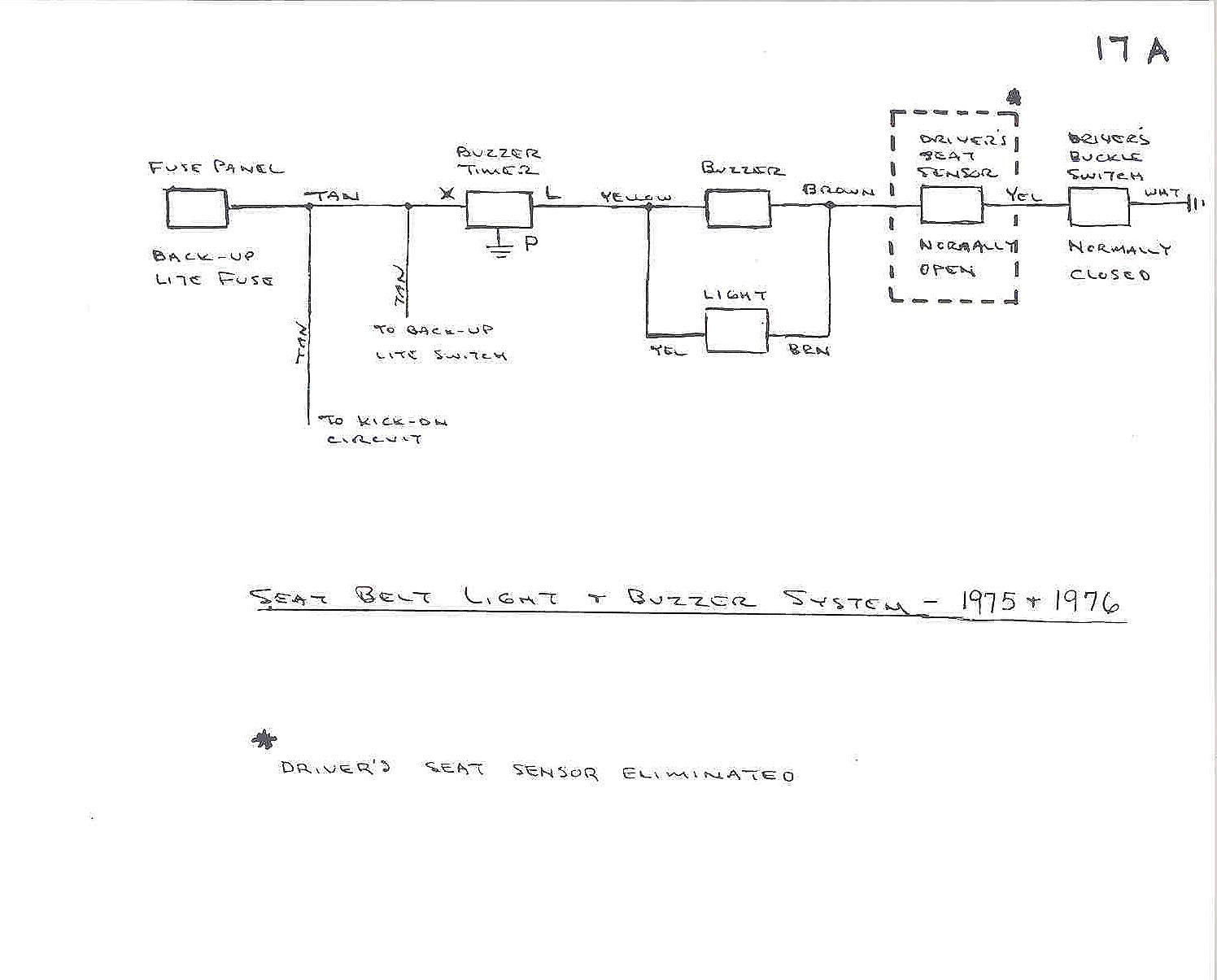

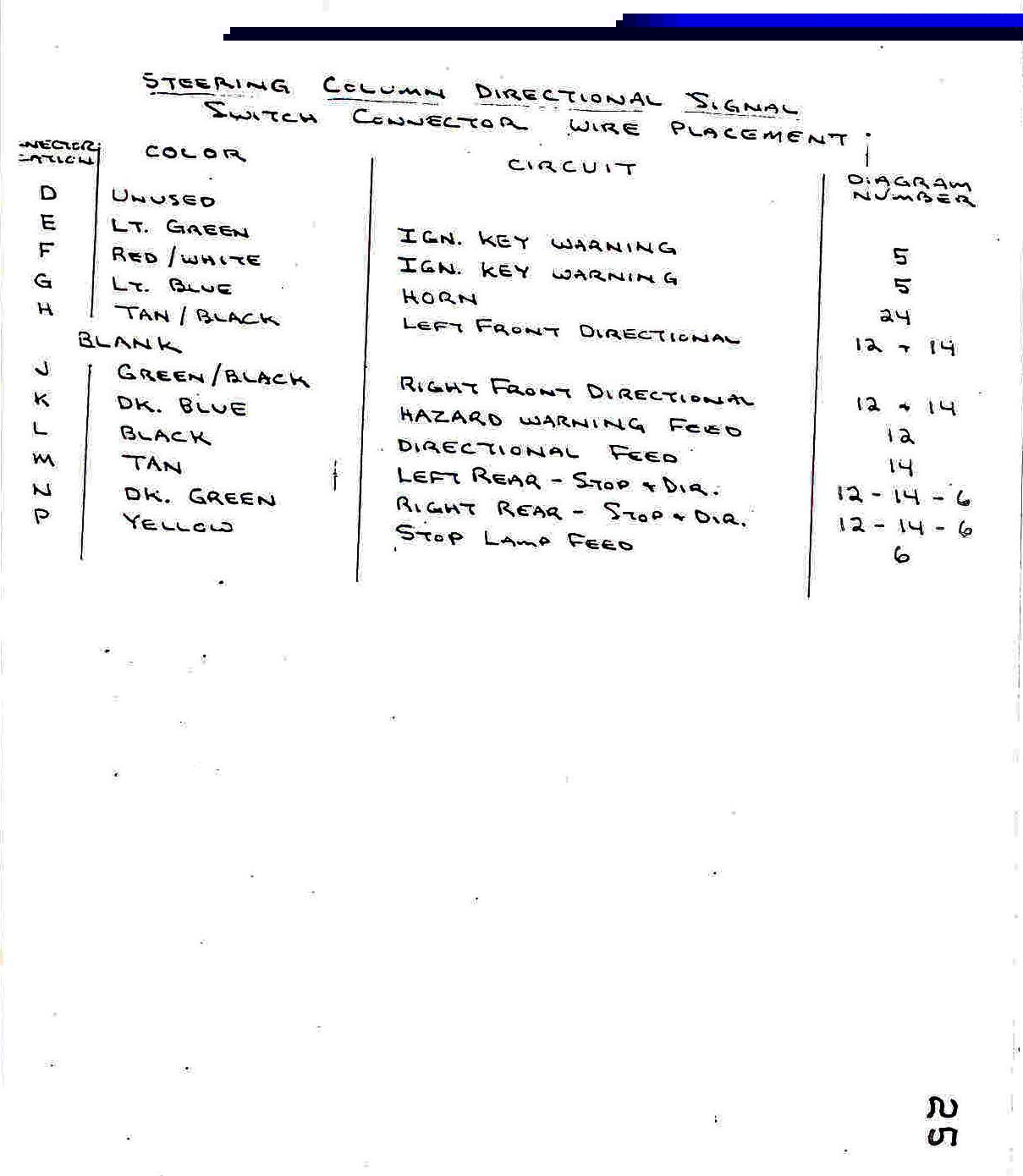

Avanti Electrical Circuits 72-81


( These diagrams are made available only after a protracted search for the original author "E.J.D 3rd", was made. No reference to the name has been found, and the last copyright was 1990. / rfj )

( Open image in separate window to enlarge)
