Bob's Studebaker Resource Website

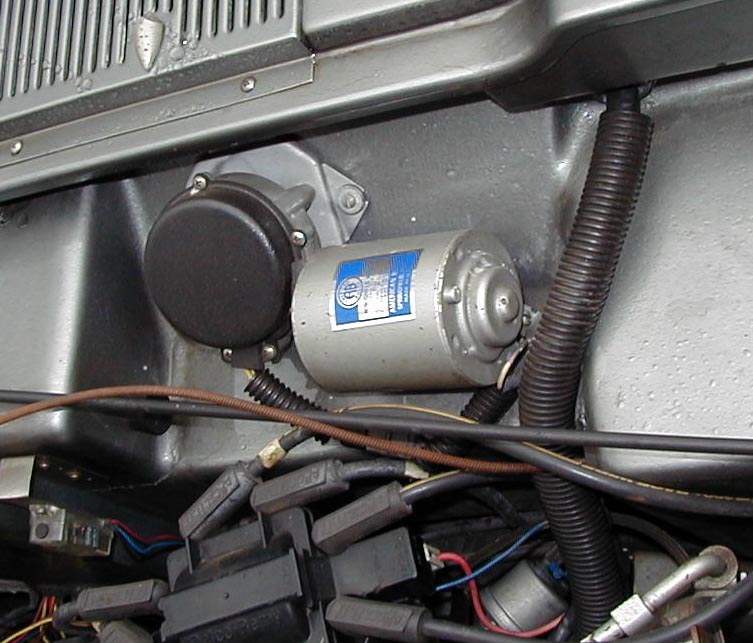

Pic 2
Wiper Motors (RQB 1974 - 1976)
These motors, when mounted, are angled downward.
The plastic wiring cover sold by vendors should fit either application
The Studebaker Avanti and the early Avanti II's up through RQA models share the same wiper motor.
The numbers stamped on the body are
Prestolite
EPV 4001 g12v
T 2
The guts of this motor are the same as used on a 1962 Chrysler Imperial
The signature of the original motor is that the case is mounted on a level plane right to left

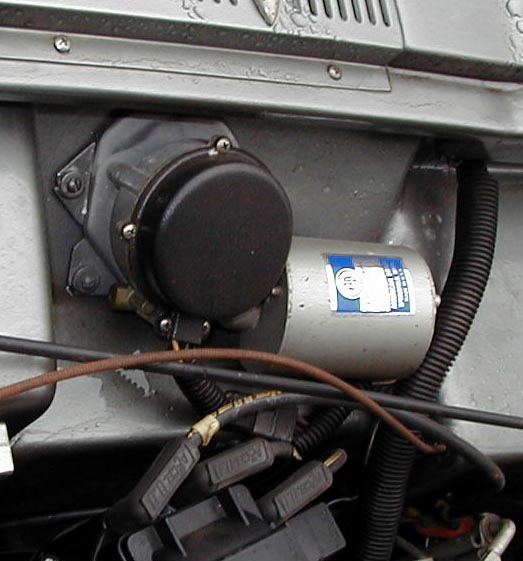

Pic 1
Wiper motors read EPV 4004 12v. The 74 has E-11 embossed below
these #s and the 76 has J-2. Both wiper motors have the wires exposed
on the top of the round section. (Paul Katson)
