1956 Hawk rack & pinion Steering

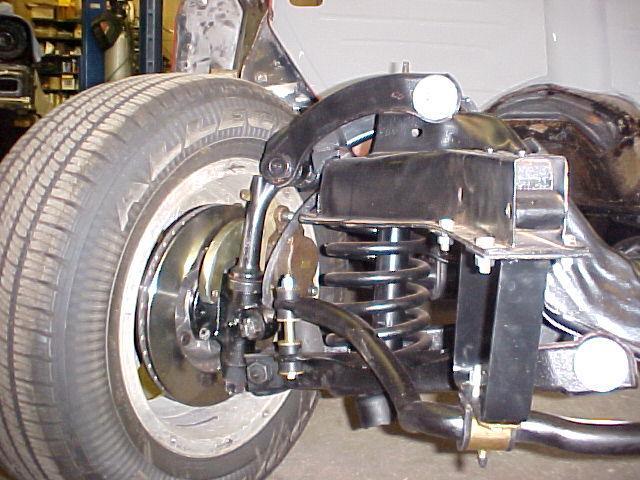

Jim Turner disc brakes, 1-1/8" sway bar, '75 GM Van tilt coluum (smoothed down with no shift lever and no gear indicator) pushing an '85 Sky Hawk rack & pinion and American Daisy Spoke Alum. wheels W/3 bar KO's wraped with 205 65 R15 Goodyear rubber.

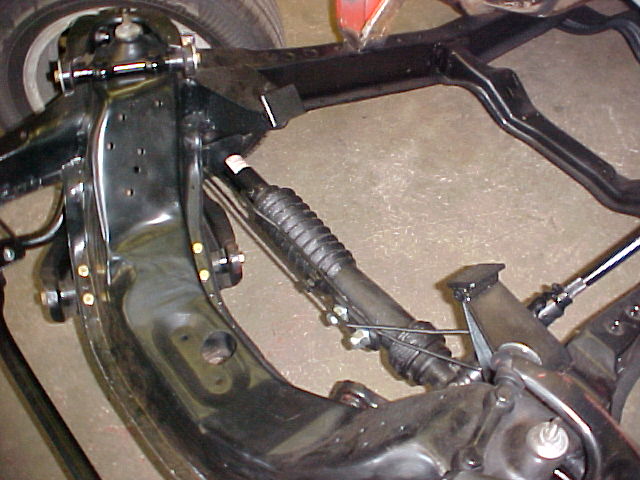

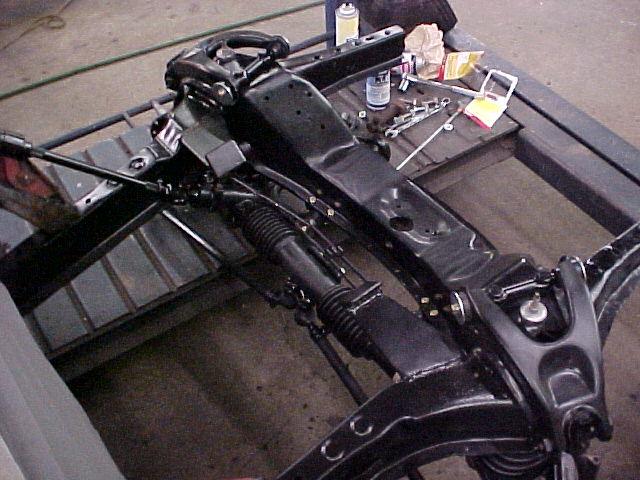

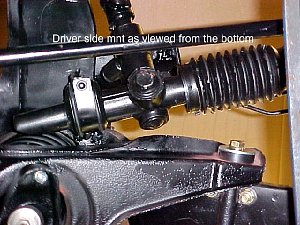

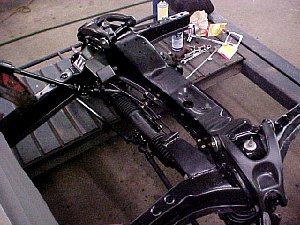

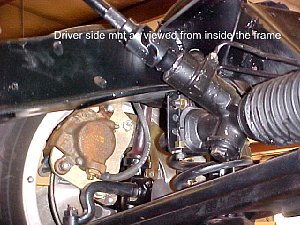

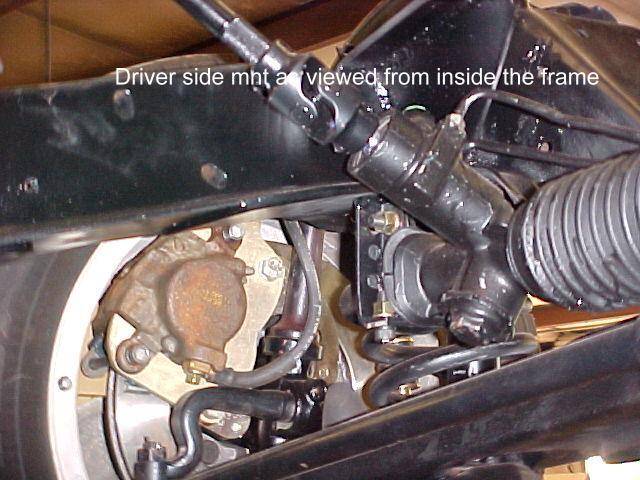

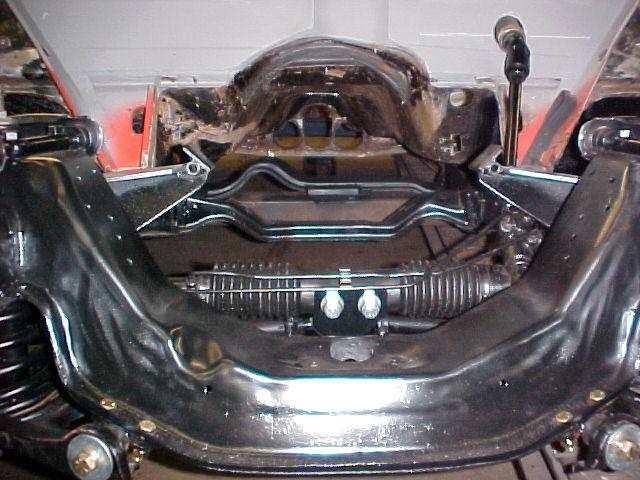

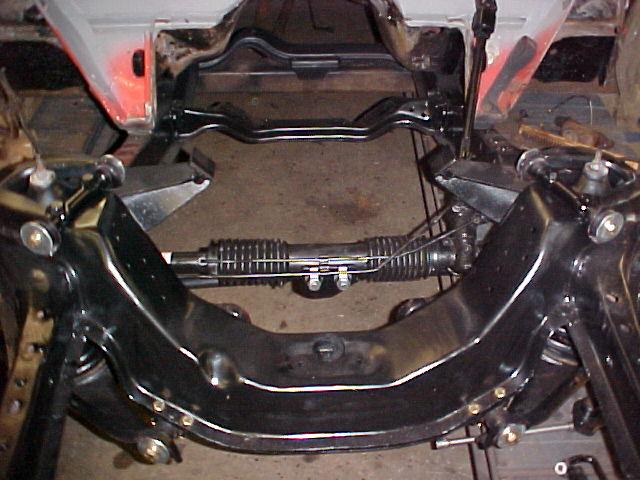

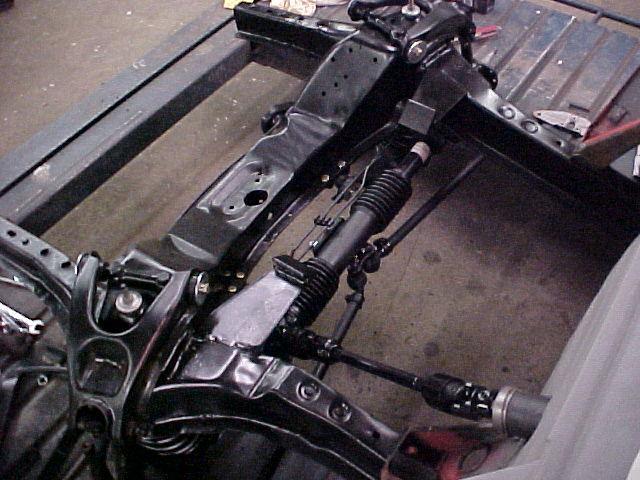

This uses a center steer (stock length Stude tie rods that hook to the center of the rack) rack & pinion from a '85 Buick Sky Hawk. I first put one on the 500 Caddy powered '53 Stude Cp. about 4 years ago and I thought it was my unique idea but I have seen other Studes with a similar setup using this same R&P, but all installations so far have been different. These R&P's are designed for the tie rods to mount on the front of the rack. But I move the R&P as far forward as I can (so far in fact I have to fold down the flange on the back of the lower control arm) and build a bracket that curves around the bottom of the rack and mount the tie rods on the back of the rack. This makes the steering shaft from the rack to the column a lot easier to do and also gives more room for the oil pan.


56hawkrandp1.jpg 56hawkrandp2.jpg 56hawkrandp3.jpg
56hawkrandp4.jpg 56hawkrandp5.jpg 56hawkrandp6.jpg
56hawkrandp7.jpg 56hawkrandp8.jpg 56hawkrandp9.jpg

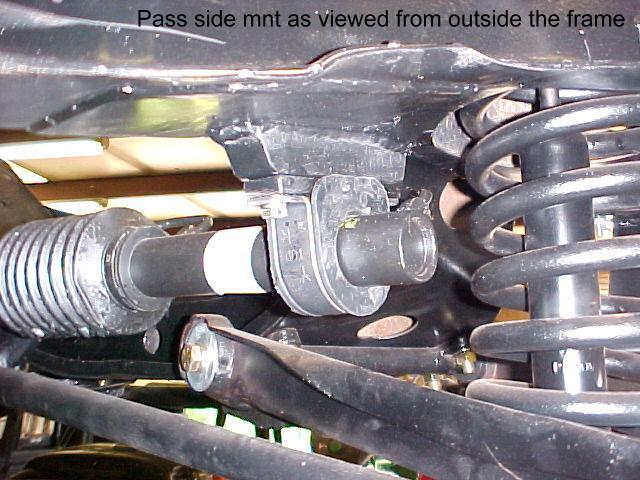

56hawkrandp9a.jpg 56hawkrandp9b.jpg 56hawkrandp9c.jpg

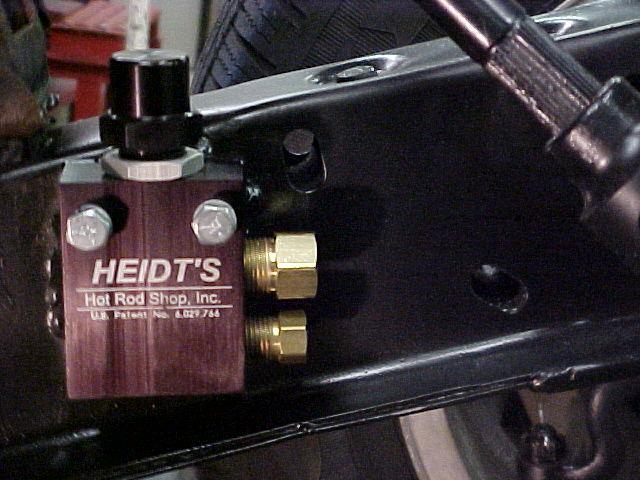

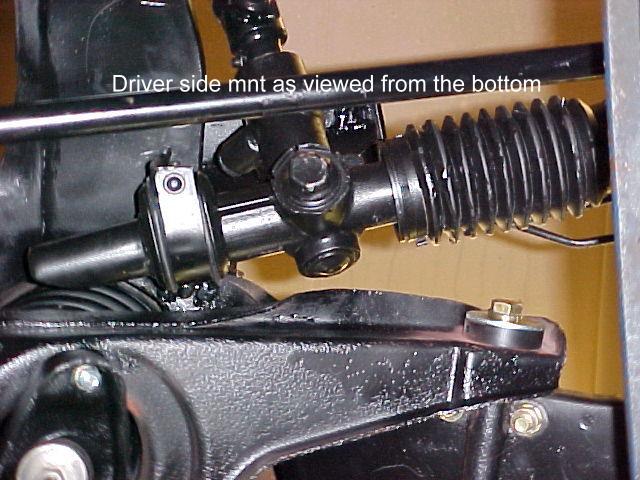

56hawkrandp9d.jpg psctlvalvea.jpg psctlvalveb.jpg

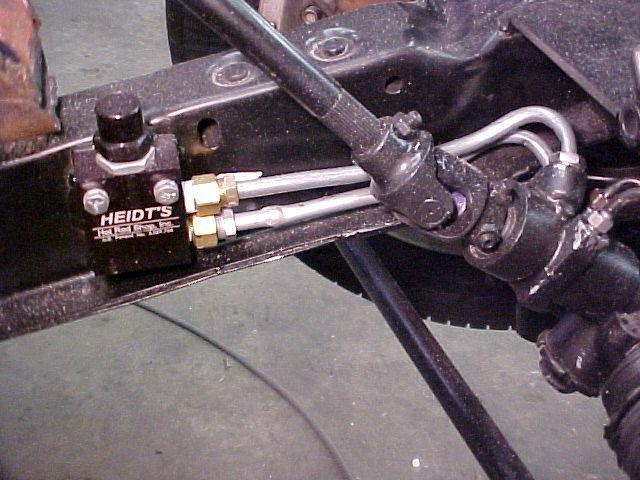

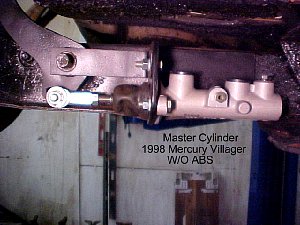

rp260606a.jpg rp260606b.jpg rp260606c.jpg
rp260606d.jpg rp260606e.jpg rp260606f.jpg

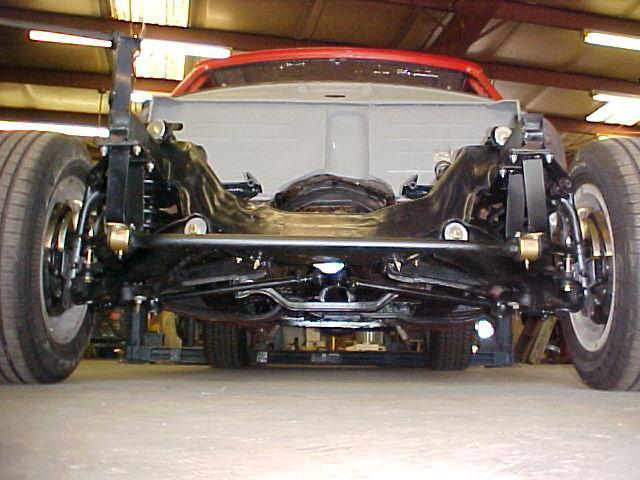

rp260606k.jpg rp260606m.jpg rp260606n.jpg

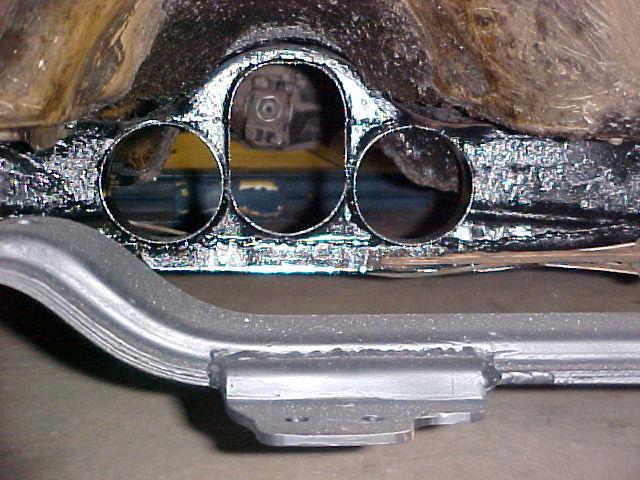

rp260606o.jpg rp260606p.jpg rp260606q.jpg
